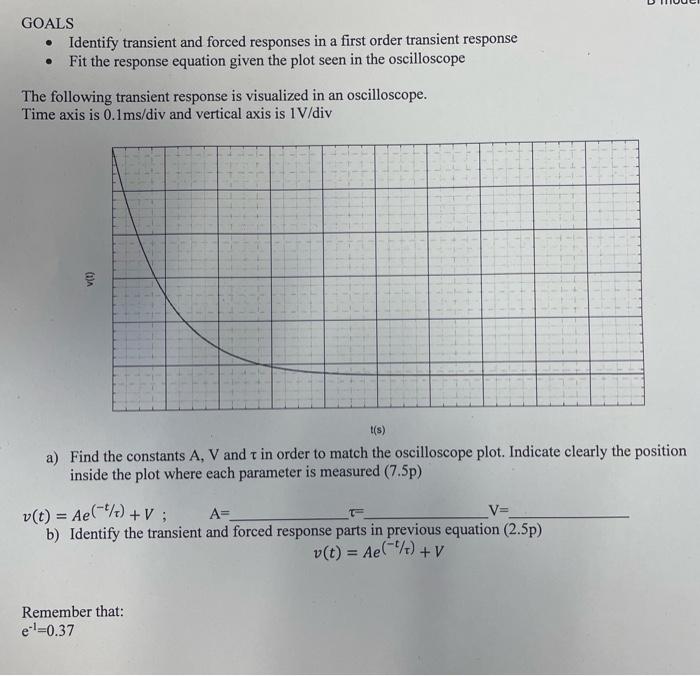

GOALS • Identify transient and forced responses in a first order transient response Fit the response equation given the plot seen in the oscilloscope The following transient response is visualized in an oscilloscope. Time axis is 0.1ms/div and vertical axis is 1V/div (0) t(s) a) Find the constants A, V and t in order to match the oscilloscope plot. Indicate clearly the position inside the plot where each parameter is measured (7.5p) v(t) = Ae(-9%) +V; A= V= b) Identify the transient and forced response parts in previous equation (2.5p) v(t) = Ae("%) + V Remember that: e-1=0.37
