As shown in Figure 1, the T-shaped beam is subjected to a uniformly distributed force w=50 kN/m. Please: (1) Plot the in

[answerhappygod]

As Shown In Figure 1 The T Shaped Beam Is Subjected To A Uniformly Distributed Force W 50 Kn M Please 1 Plot The In 1 (42.31 KiB) Viewed 45 times

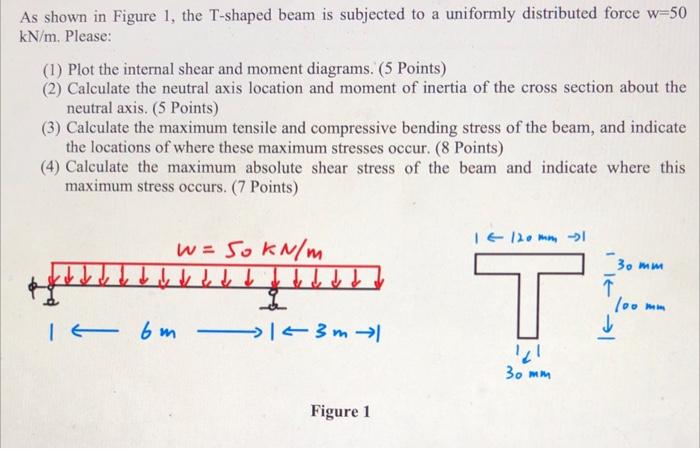

As shown in Figure 1, the T-shaped beam is subjected to a uniformly distributed force w=50 kN/m. Please: (1) Plot the internal shear and moment diagrams. (5 Points) (2) Calculate the neutral axis location and moment of inertia of the cross section about the neutral axis. (5 Points) (3) Calculate the maximum tensile and compressive bending stress of the beam, and indicate the locations of where these maximum stresses occur. (8 Points) (4) Calculate the maximum absolute shear stress of the beam and indicate where this maximum stress occurs. (7 Points) I 12 --> w= So kn/m -30mm 1 100 mm TA ga 1 — 1 om 1-3m → - 30mm Figure 1
