Three batteries (E, = {2 = {3 = 9v) Three resistors (R4 = 200 17, R22 3001. Rz z 4001) Rz MA دک ६ T EL {R₃ Ri A) Find th

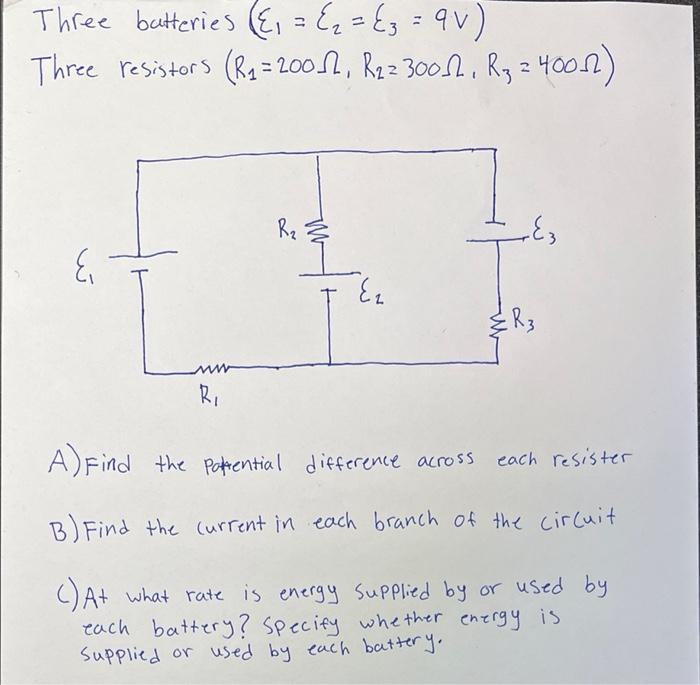

Three batteries (E, = {2 = {3 = 9v) Three resistors (R4 = 200 17, R22 3001. Rz z 4001) Rz MA دک ६ T EL {R₃ Ri A) Find the paffential difference across each resister B) Find the current in each branch of the circuit () At what rate is energy supplied by or used by each battery? Specify whether energy is supplied or used by each battery.
