(a) Consider two gears that contact at point P In Figure 02a. Gear 8 pushes on gear A with a force of 100 N at P (Figure

[answerhappygod]

A Consider Two Gears That Contact At Point P In Figure 02a Gear 8 Pushes On Gear A With A Force Of 100 N At P Figure 1 (82.1 KiB) Viewed 30 times

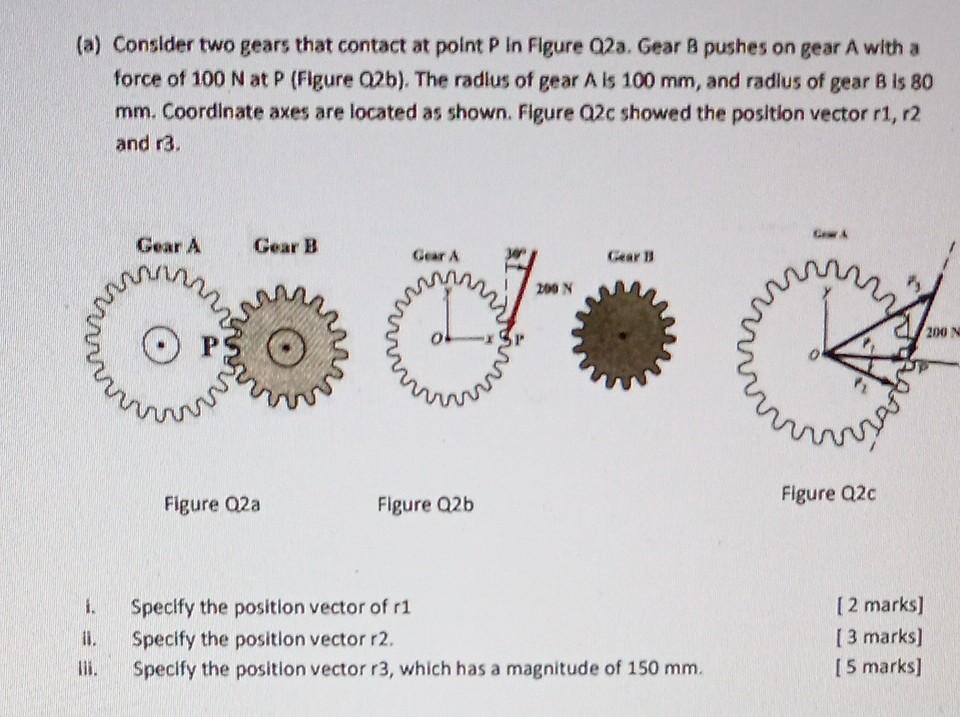

(a) Consider two gears that contact at point P In Figure 02a. Gear 8 pushes on gear A with a force of 100 N at P (Figure 02b). The radius of gear Als 100 mm, and radius of gear B is 80 mm. Coordinate axes are located as shown. Figure 02c showed the position vector r1, 12 and ra. Gear A Gear B Gear A Gear mi 200 N mm 200 N town my ht row ws mo Figure 02a Figure Q2c Figure 02b 1. Specify the position vector of r1 Specify the position vector r2. Specify the position vector r3, which has a magnitude of 150 mm [2 marks] [3 marks] [ 5 marks)
