Problem 4. The acrylic plastic rod shown in figure is 200 mm long and 15 mm in diameter. (25 points) a) If an axial load

[answerhappygod]

Problem 4 The Acrylic Plastic Rod Shown In Figure Is 200 Mm Long And 15 Mm In Diameter 25 Points A If An Axial Load 1 (16.47 KiB) Viewed 39 times

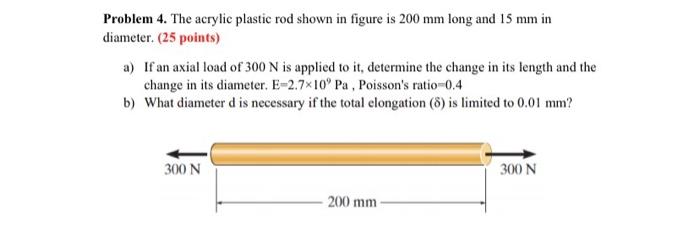

Problem 4. The acrylic plastic rod shown in figure is 200 mm long and 15 mm in diameter. (25 points) a) If an axial load of 300 N is applied to it, determine the change in its length and the change in its diameter. E-2.7x10° Pa , Poisson's ratio-0.4 b) What diameter d is necessary if the total elongation () is limited to 0.01 mm? 300 N 300 N 200 mm
