Question 2 20 Marks The Forces F F And F All Of Which Act On Point A Of The Bracket Are Specified In Three Differe 1 (89.95 KiB) Viewed 92 times
can help me to answer question (d) ?

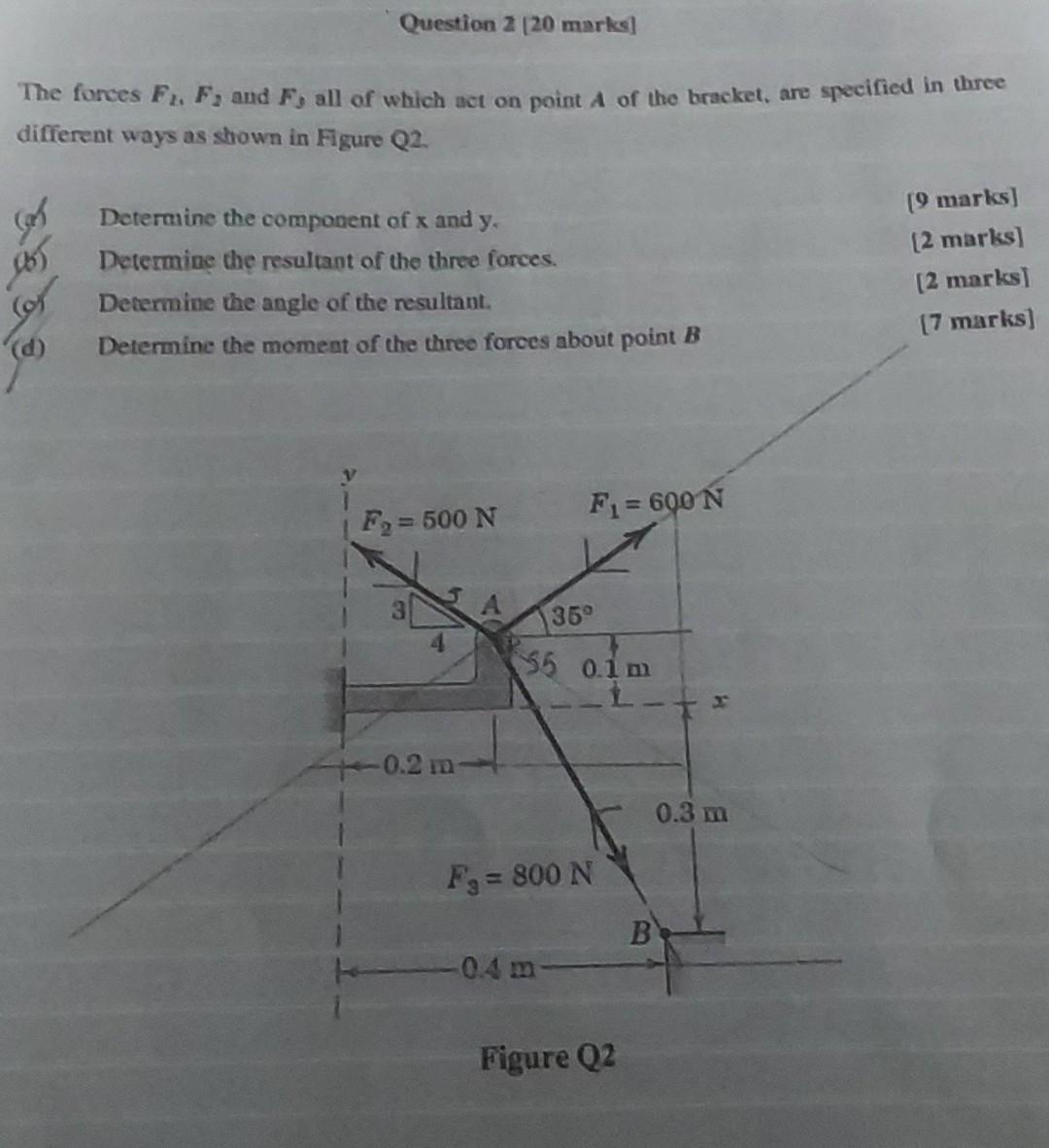

Question 2 [20 marks] The forces F. F, and F, all of which act on point A of the bracket, are specified in three different ways as shown in Figure Q2. ( 205 Determine the component of x and y. Determine the resultant of the three forces. Determine the angle of the resultant. Determine the moment of the three forces about point B 19 marks] [2 marks] [2 marks] [7 marks) (D) F1 = 600 N F2 = 500 N 36° 55 011 0.2 m 0.3 m Fg = 800 N B -0.4m Figure Q2
