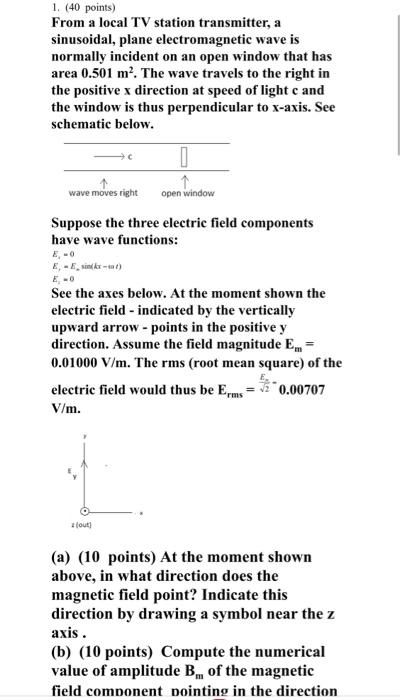

1. (40 points) From a local TV station transmitter, a sinusoidal, plane electromagnetic wave is normally incident on an open window that has area 0.501 m². The wave travels to the right in the positive x direction at speed of light c and the window is thus perpendicular to x-axis. See schematic below. 1 1. wave moves right open window Suppose the three electric field components have wave functions: E--) See the axes below. At the moment shown the electric field - indicated by the vertically upward arrow - points in the positive y direction. Assume the field magnitude E = 0.01000 V/m. The rms (root mean square) of the electric field would thus be Erms 0.00707 V/m. lout (a) (10 points) At the moment shown above, in what direction does the magnetic field point? Indicate this direction by drawing a symbol near the z axis. (b) (10 points) Compute the numerical value of amplitude B. of the magnetic field component pointing in the direction

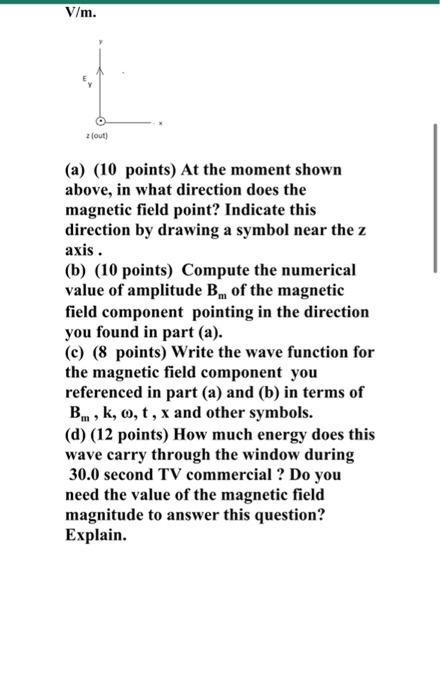

V/m. 2 lout) (a) (10 points) At the moment shown above, in what direction does the magnetic field point? Indicate this direction by drawing a symbol near the z axis. (b) (10 points) Compute the numerical value of amplitude B. of the magnetic field component pointing in the direction you found in part (a). (c) (8 points) Write the wave function for the magnetic field component you referenced in part (a) and (b) in terms of B., k, o, t, x and other symbols. (d) (12 points) How much energy does this wave carry through the window during 30.0 second TV commercial ? Do you need the value of the magnetic field magnitude to answer this question? Explain.
