As shown in the figure, the bar OA, of negligible weight, is anchored with a ball and socket bearing to a vertical wall

Post by answerhappygod »

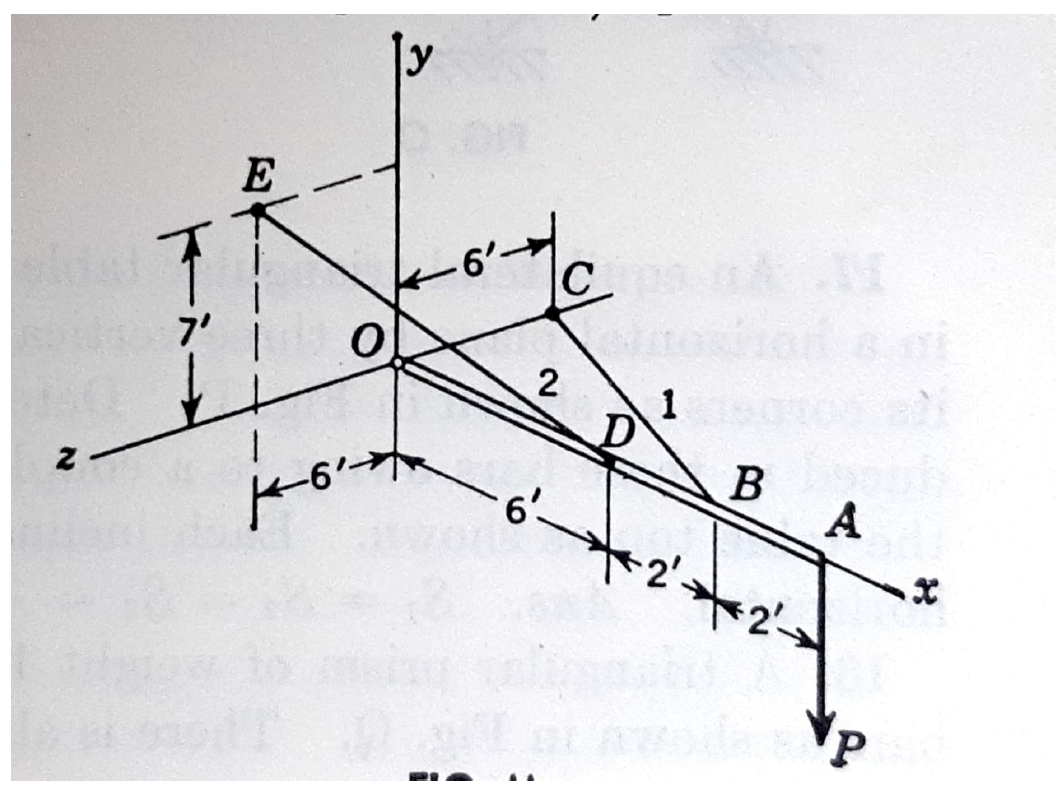

As shown in the figure, the bar OA, of negligible weight, is
anchored with a ball and socket bearing to a vertical wall at O and
is held in the position shown by the two cables BC and DE. A
vertical force P of 100 lb acts on it at A. Determine the tensions
in both cables.
As Shown In The Figure The Bar Oa Of Negligible Weight Is Anchored With A Ball And Socket Bearing To A Vertical Wall 1
As Shown In The Figure The Bar Oa Of Negligible Weight Is Anchored With A Ball And Socket Bearing To A Vertical Wall 1 (851.82 KiB) Viewed 45 times
у 6' C 7' o N N konte B 6! A 2! VP
