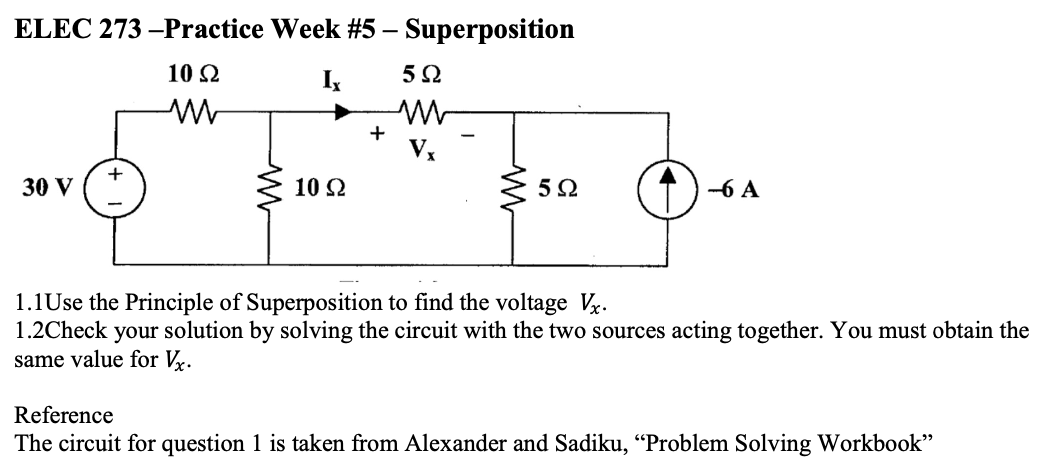

ELEC 273 -Practice Week #5 – Superposition 10 Ω I 522 M + + 30 V 10 12 522 -6 A 1.1 Use the Principle of Superposition to find the voltage Vx. 1.2Check your solution by solving the circuit with the two sources acting together. You must obtain the same value for Vx. Reference The circuit for question 1 is taken from Alexander and Sadiku, “Problem Solving Workbook”
