Q1. A pure resistive load is connected to an ideal step-down transformer as shown in figure Q1. The primary voltage and

Post by answerhappygod »

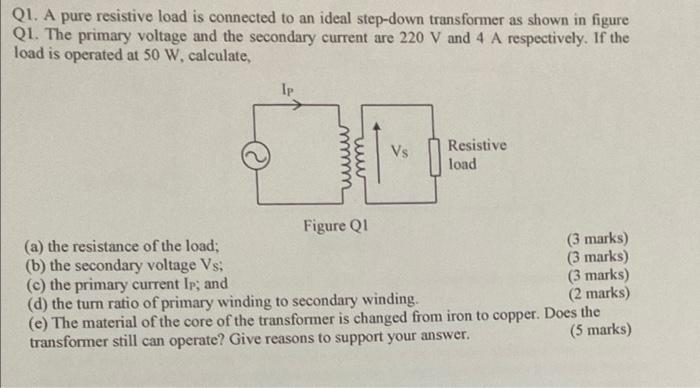

Q1 A Pure Resistive Load Is Connected To An Ideal Step Down Transformer As Shown In Figure Q1 The Primary Voltage And 1
Q1 A Pure Resistive Load Is Connected To An Ideal Step Down Transformer As Shown In Figure Q1 The Primary Voltage And 1 (33.52 KiB) Viewed 40 times
Q1. A pure resistive load is connected to an ideal step-down transformer as shown in figure Q1. The primary voltage and the secondary current are 220 V and 4 A respectively. If the load is operated at 50 W, calculate, lp www Vs Resistive load Figure Q1 (a) the resistance of the load; (3 marks) (b) the secondary voltage Vs. (3 marks) (c) the primary current Ip; and (3 marks) (d) the turn ratio of primary winding to secondary winding. (2 marks) (e) The material of the core of the transformer is changed from iron to copper. Does the transformer still can operate? Give reasons to support your answer. (5 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
