labeled diagram/sketch, unknowns, logical progression, ...) Work in symbolic form first! P.1.(4 pts) A concrete block of

[answerhappygod]

Labeled Diagram Sketch Unknowns Logical Progression Work In Symbolic Form First P 1 4 Pts A Concrete Block Of 1 (23.38 KiB) Viewed 46 times

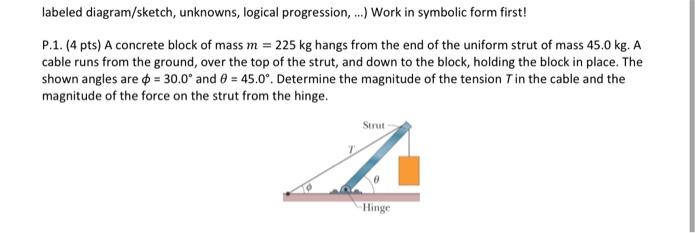

labeled diagram/sketch, unknowns, logical progression, ...) Work in symbolic form first! P.1.(4 pts) A concrete block of mass m = 225 kg hangs from the end of the uniform strut of mass 45.0 kg. A cable runs from the ground, over the top of the strut, and down to the block, holding the block in place. The shown angles are 0 = 30.0° and @ = 45.0". Determine the magnitude of the tension in the cable and the magnitude of the force on the strut from the hinge. Sunt A Hinge
