Question 3: Using Kirchhoff's rules. (4 marks) 12 V2 HUH 24 V R1 V1 6 V G Loop 1 3500 Loop 2 R2 200Ω A. Write the equati

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 3: Using Kirchhoff's rules. (4 marks) 12 V2 HUH 24 V R1 V1 6 V G Loop 1 3500 Loop 2 R2 200Ω A. Write the equati

Post by answerhappygod »

1
1 (31.82 KiB) Viewed 44 times

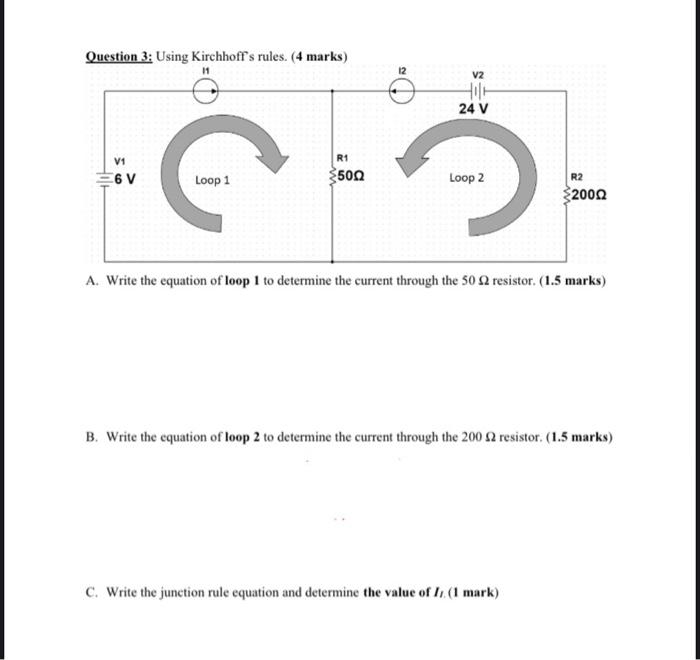

Question 3: Using Kirchhoff's rules. (4 marks) 12 V2 HUH 24 V R1 V1 6 V G Loop 1 3500 Loop 2 R2 200Ω A. Write the equation of loop 1 to determine the current through the 50 A resistor. (1.5 marks) B. Write the equation of loop 2 to determine the current through the 2002 resistor. (1.5 marks) c. Write the junction rule equation and determine the value of L. (1 mark)
