A pulse wave with maximum voltage of 100 [V] is supplied to the RL circuit in the figure. What will be the current (in [

Post by answerhappygod »

A Pulse Wave With Maximum Voltage Of 100 V Is Supplied To The Rl Circuit In The Figure What Will Be The Current In 1
A Pulse Wave With Maximum Voltage Of 100 V Is Supplied To The Rl Circuit In The Figure What Will Be The Current In 1 (53.34 KiB) Viewed 38 times

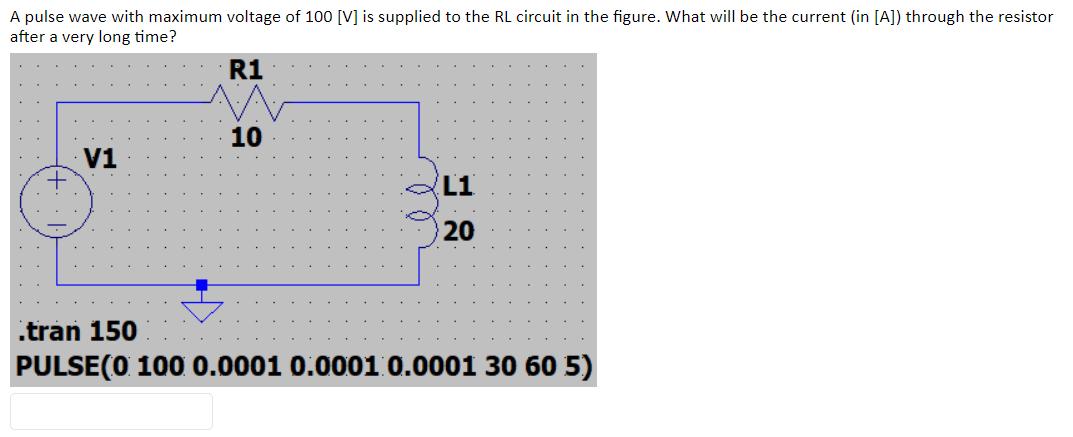

A pulse wave with maximum voltage of 100 [V] is supplied to the RL circuit in the figure. What will be the current (in [A]) through the resistor after a very long time? R1 10 V1 + L1 20 tran 150 PULSE(O 100 0.0001 0.0001 0.0001 30 60 5)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
