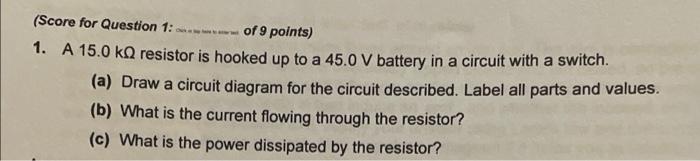

a (Score for Question 1: ... of 9 points) 1. A 15.0 kA resistor is hooked up to a 45.0 V battery in a circuit with a switch. (a) Draw a circuit diagram for the circuit described. Label all parts and values. (b) What is the current flowing through the resistor? (c) What is the power dissipated by the resistor? a

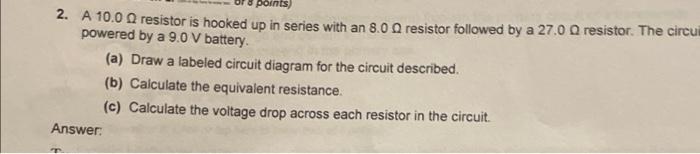

points) 2. A 10.0 Q resistor is hooked up in series with an 8.0 O resistor followed by a 27.0 Q resistor. The circui powered by a 9.0 V battery. (a) Draw a labeled circuit diagram for the circuit described. (b) Calculate the equivalent resistance. (c) Calculate the voltage drop across each resistor in the circuit. Answer:
