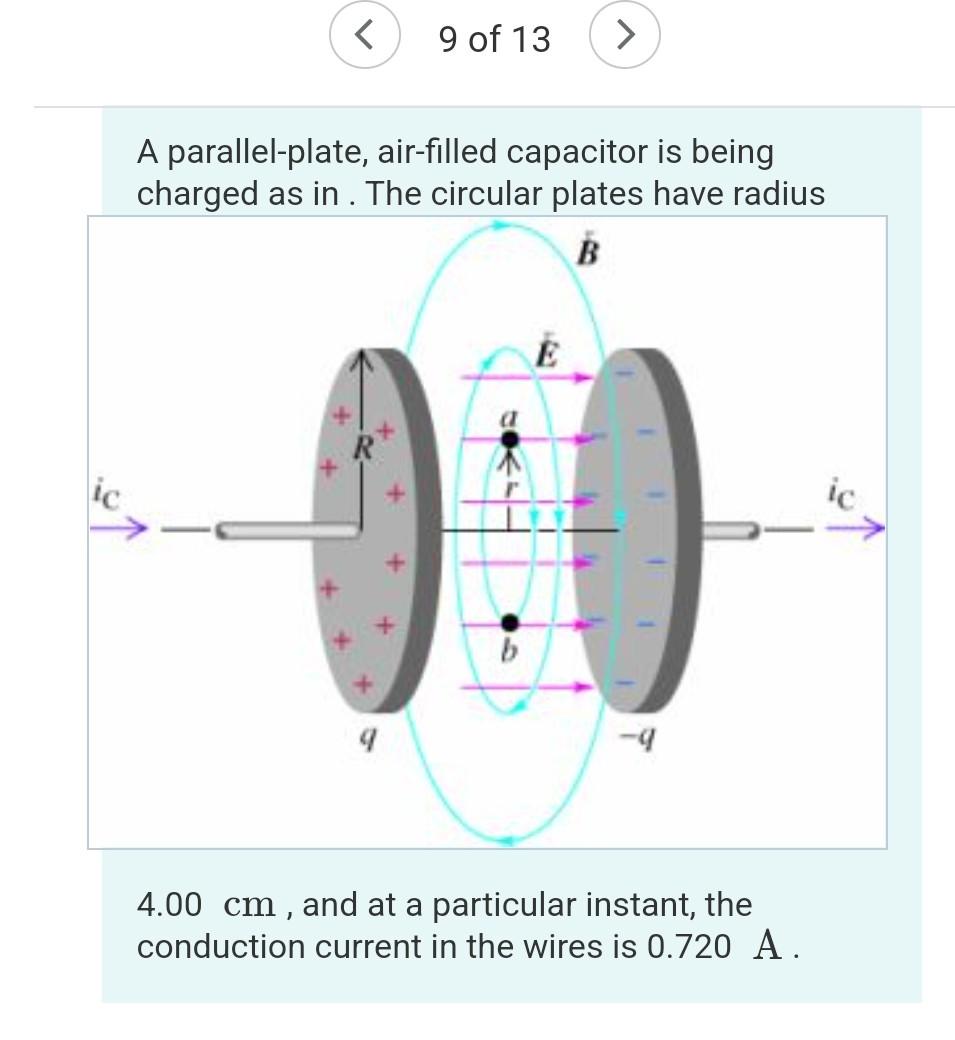

< 9 of 13 > A parallel-plate, air-filled capacitor is being charged as in. The circular plates have radius B ic ic b 4.00 cm , and at a particular instant, the conduction current in the wires is 0.720 A.

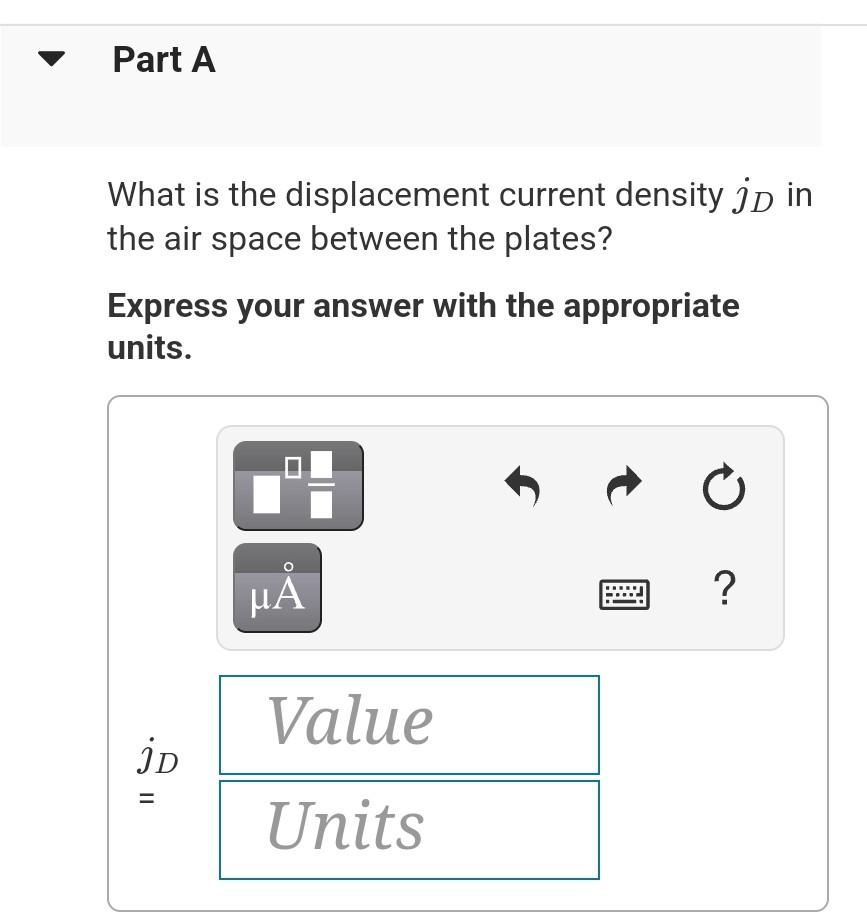

Part A What is the displacement current density id in the air space between the plates? Express your answer with the appropriate units. t O μΑ ? Value İD ॥ Units

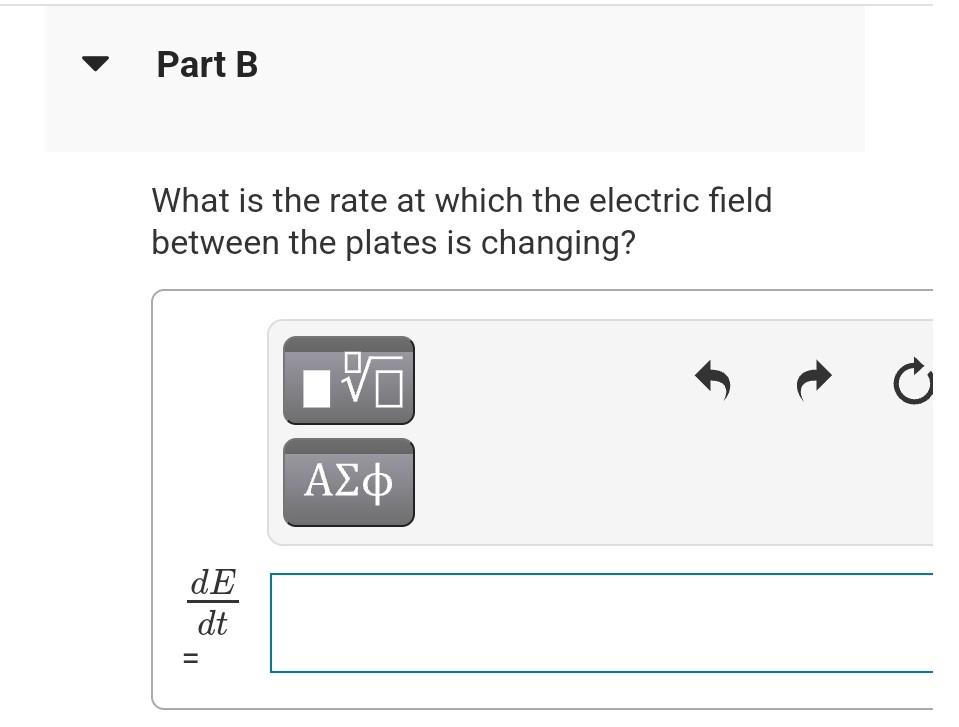

Part B What is the rate at which the electric field between the plates is changing? Va f t o ΑΣΦ dE dt II

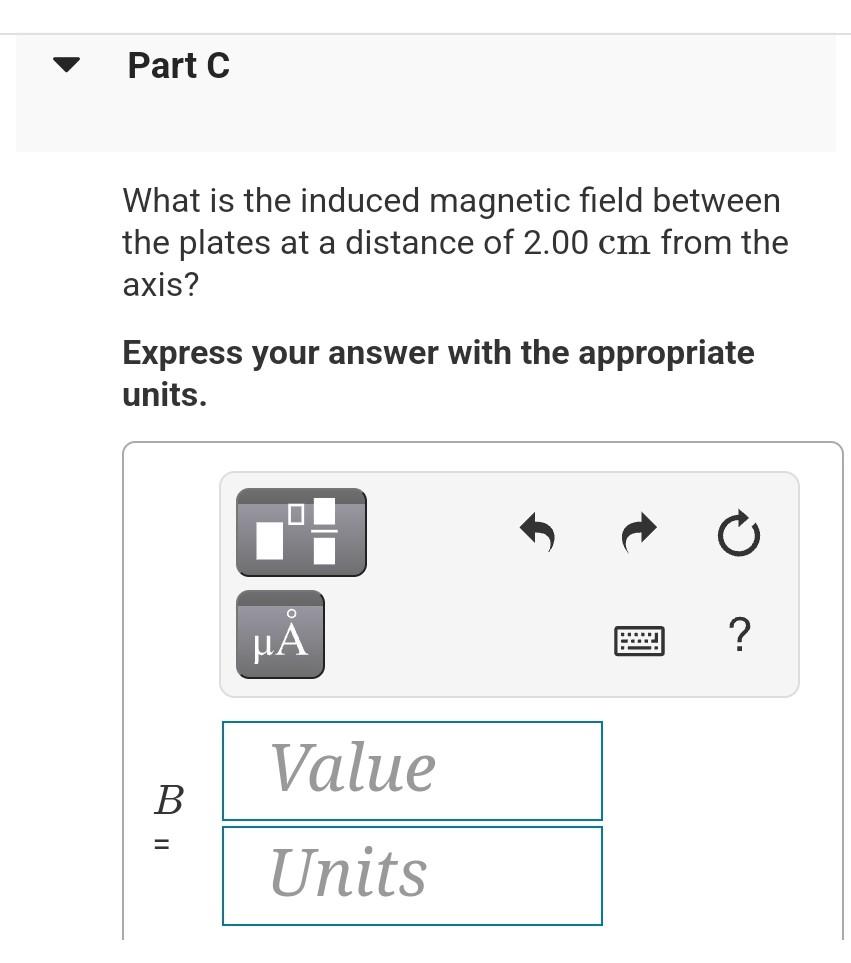

Part C What is the induced magnetic field between the plates at a distance of 2.00 cm from the axis? Express your answer with the appropriate units. μΑ ? Value B Units

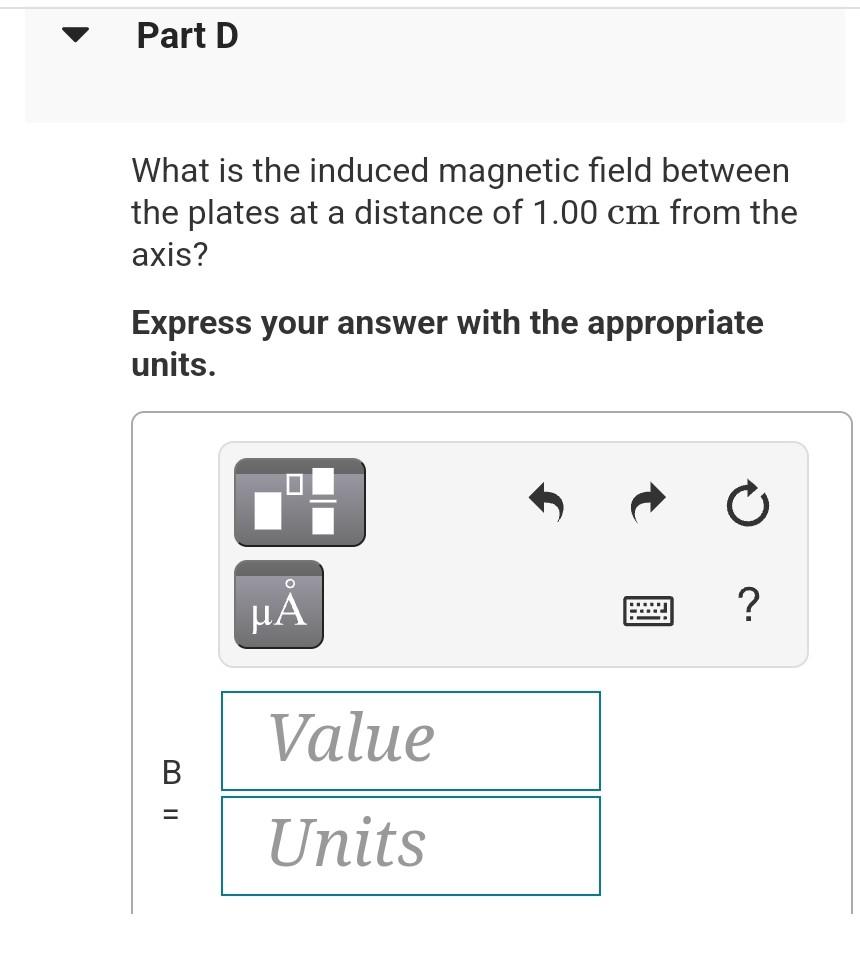

Part D What is the induced magnetic field between the plates at a distance of 1.00 cm from the axis? Express your answer with the appropriate units. I t o μΑ ? Value B Units
