Consider a rectangular 20.0 cm by 50.0 cm loop of wire carrying a clockwise electric current I =5.20 A . The rectangular

[answerhappygod]

Consider A Rectangular 20 0 Cm By 50 0 Cm Loop Of Wire Carrying A Clockwise Electric Current I 5 20 A The Rectangular 1 (49.49 KiB) Viewed 52 times

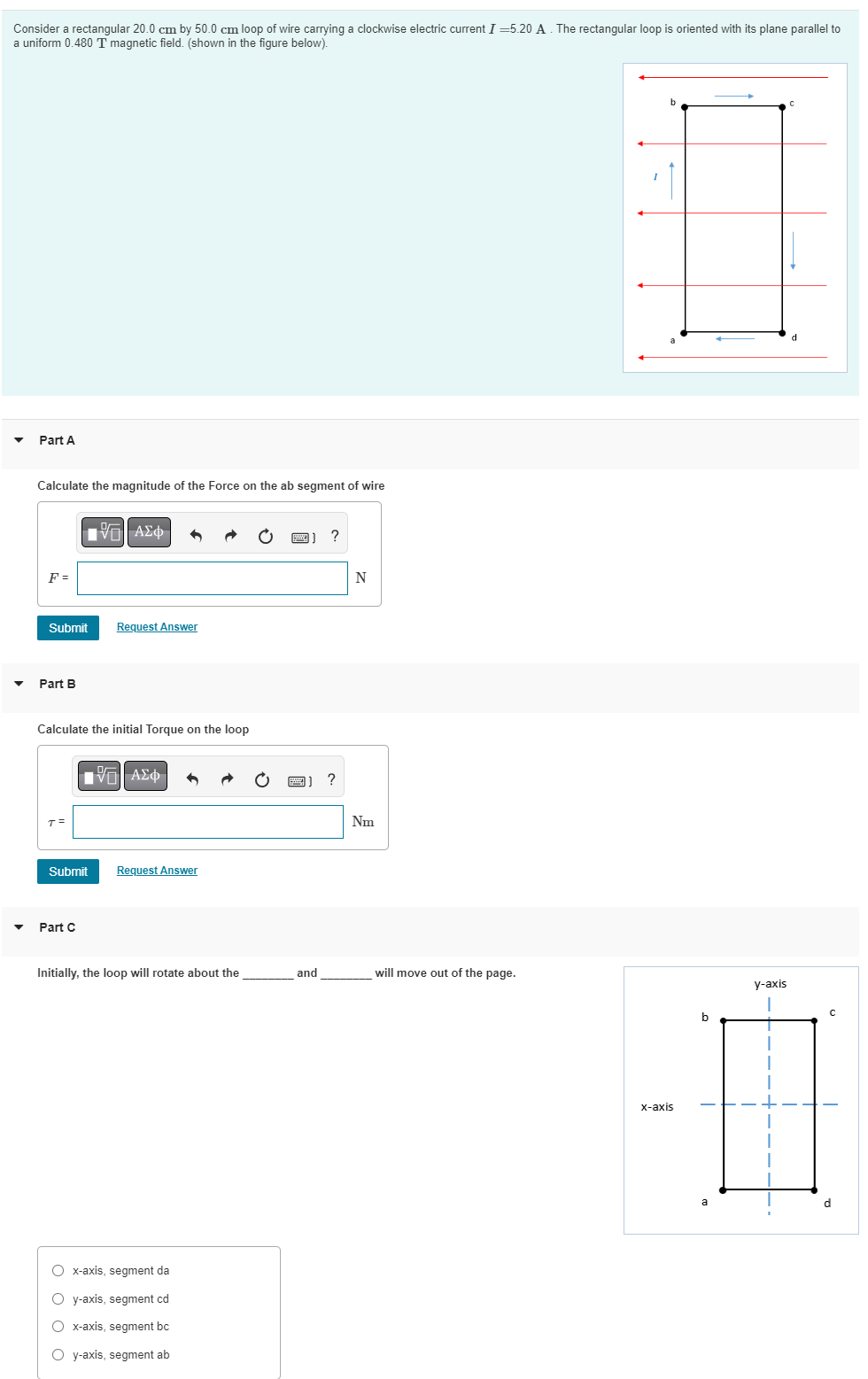

Consider a rectangular 20.0 cm by 50.0 cm loop of wire carrying a clockwise electric current I =5.20 A . The rectangular loop is oriented with its plane parallel to a uniform 0.480 T magnetic field (shown in the figure below). Part A Calculate the magnitude of the Force on the ab segment of wire ΟΙ ΑΣΦ ) ? F= N Submit Request Answer Part B Calculate the initial Torque on the loop EVO AL ? T= Nm Submit Request Answer Part C Initially, the loop will rotate about the and will move out of the page. y-axis b 1 X-axis d Ox-axis, segment da Oy-axis, segment cd O x-axis, segment bc Oy-axis, segment ab
