Problem 5 One end of a uniform - 4.00m long rod of weight w is supported by a cable at an angle of 0 - 35° with the rod.

Post by answerhappygod »

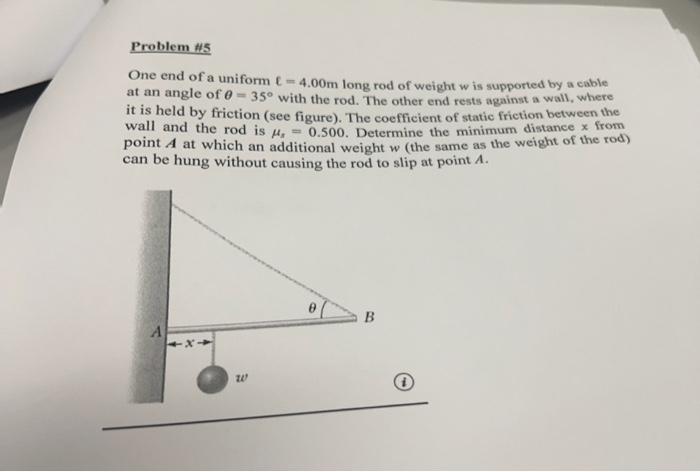

Problem 5 One End Of A Uniform 4 00m Long Rod Of Weight W Is Supported By A Cable At An Angle Of 0 35 With The Rod 1
Problem 5 One End Of A Uniform 4 00m Long Rod Of Weight W Is Supported By A Cable At An Angle Of 0 35 With The Rod 1 (24.84 KiB) Viewed 58 times
Problem 5 One end of a uniform - 4.00m long rod of weight w is supported by a cable at an angle of 0 - 35° with the rod. The other end rests against a wall, where it is held by friction (see figure). The coefficient of static friction between the wall and the rod is M. - 0.500. Determine the minimum distance x from point 4 at which an additional weight w (the same as the weight of the rod) can be hung without causing the rod to slip at point A. B А
