- 4 Use The Diagram To Answer The Questions That Follow J1 13 J2 R3 R2 R5 15 01 010 12 L2 L3 1 14 R4 2 M R1 3 11 A 1 (57.71 KiB) Viewed 46 times
4. Use the diagram to answer the questions that follow. J1 13- J2 R3 R2 R5 15 01.010 12 L2 L3 &1 14 R4 | 2 M R1 &3 11 a.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. Use the diagram to answer the questions that follow. J1 13- J2 R3 R2 R5 15 01.010 12 L2 L3 &1 14 R4 | 2 M R1 &3 11 a.

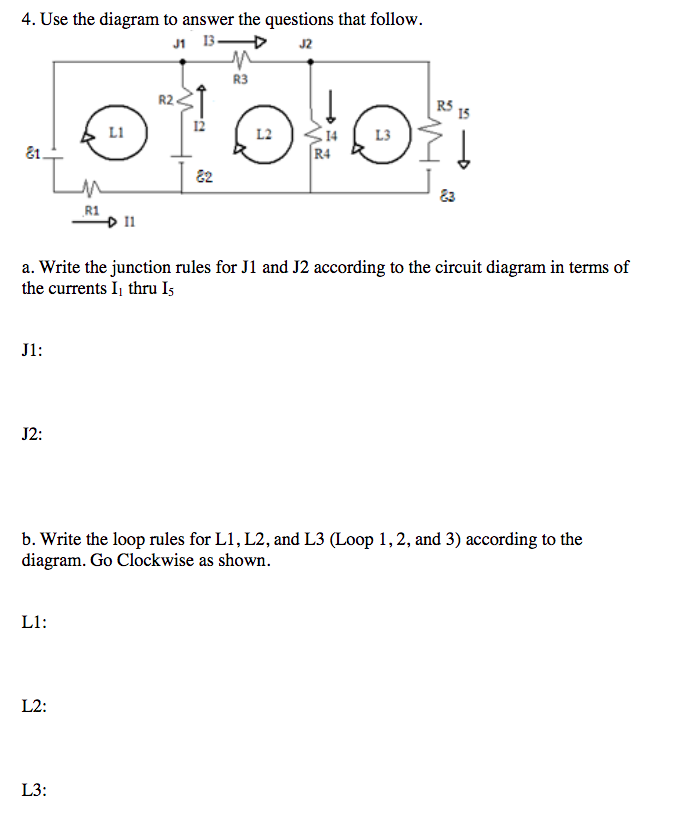

4. Use the diagram to answer the questions that follow. J1 13- J2 R3 R2 R5 15 01.010 12 L2 L3 &1 14 R4 | 2 M R1 &3 11 a. Write the junction rules for J1 and J2 according to the circuit diagram in terms of the currents I, thru Is J1: J2: b. Write the loop rules for L1, L2, and L3 (Loop 1, 2, and 3) according to the diagram. Go Clockwise as shown. L1: L2: L3:
