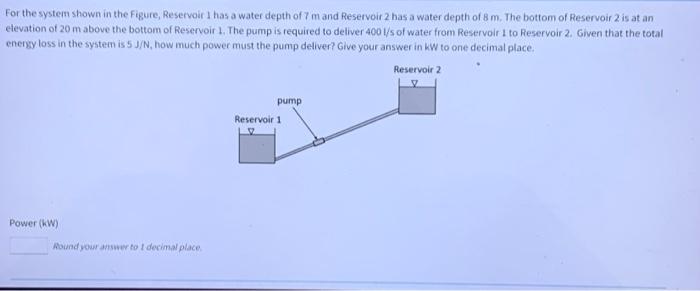

For the system shown in the Figure, Reservoit has a water depth of 7 mand Reservoir 2 has a water depth of 8 m. The bottom of Reservoir 2 is at an etevation of 20 m above the bottom of Reservoir 1. The pump is required to deliver 400 l/s of water from Reservoir 1 to Reservoir 2. Given that the total energy loss in the system is 5 3/N, how much power must the pump deliver? Give your answer in kW to one decimal place Reservoir 2 pump Reservoir 1 Power (kW) Round your answer to I decimal place
