The circuit below shows an AC power supply connected to a resistor R = 24.6 2. AV max R WW V The current through the res

Post by answerhappygod »

The Circuit Below Shows An Ac Power Supply Connected To A Resistor R 24 6 2 Av Max R Ww V The Current Through The Res 1

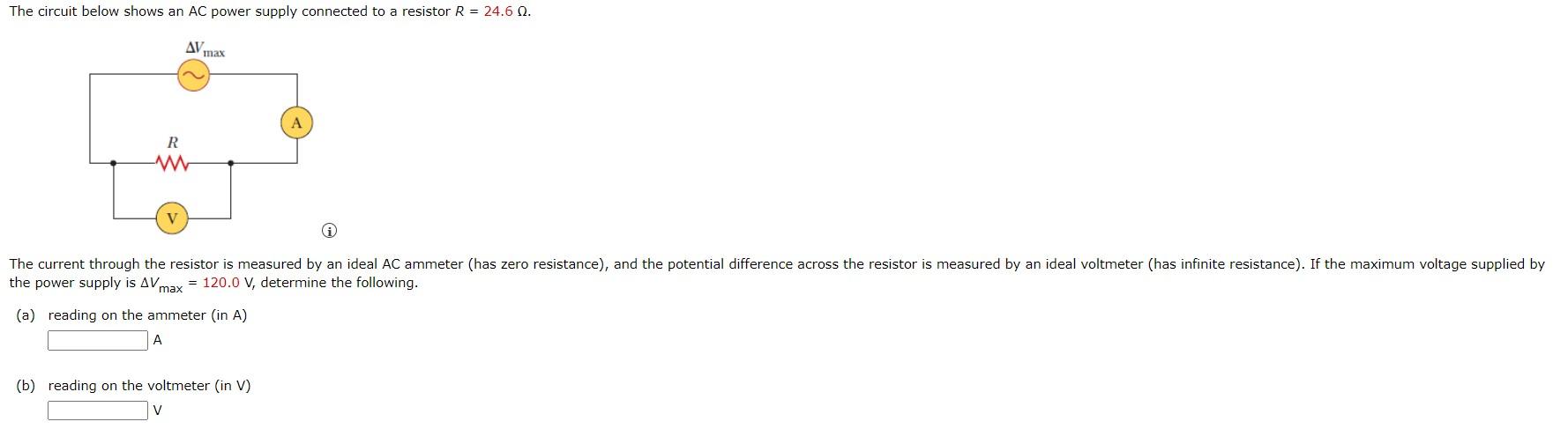

The Circuit Below Shows An Ac Power Supply Connected To A Resistor R 24 6 2 Av Max R Ww V The Current Through The Res 1 (47.77 KiB) Viewed 31 times
The circuit below shows an AC power supply connected to a resistor R = 24.6 2. AV max R WW V The current through the resistor is measured by an ideal AC ammeter (has zero resistance), and the potential difference across the resistor is measured by an ideal voltmeter (has infinite resistance). If the maximum voltage supplied by the power supply is AV max = 120.0 V, determine the following. (a) reading on the ammeter (in A) А (b) reading on the voltmeter (in V) V
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
