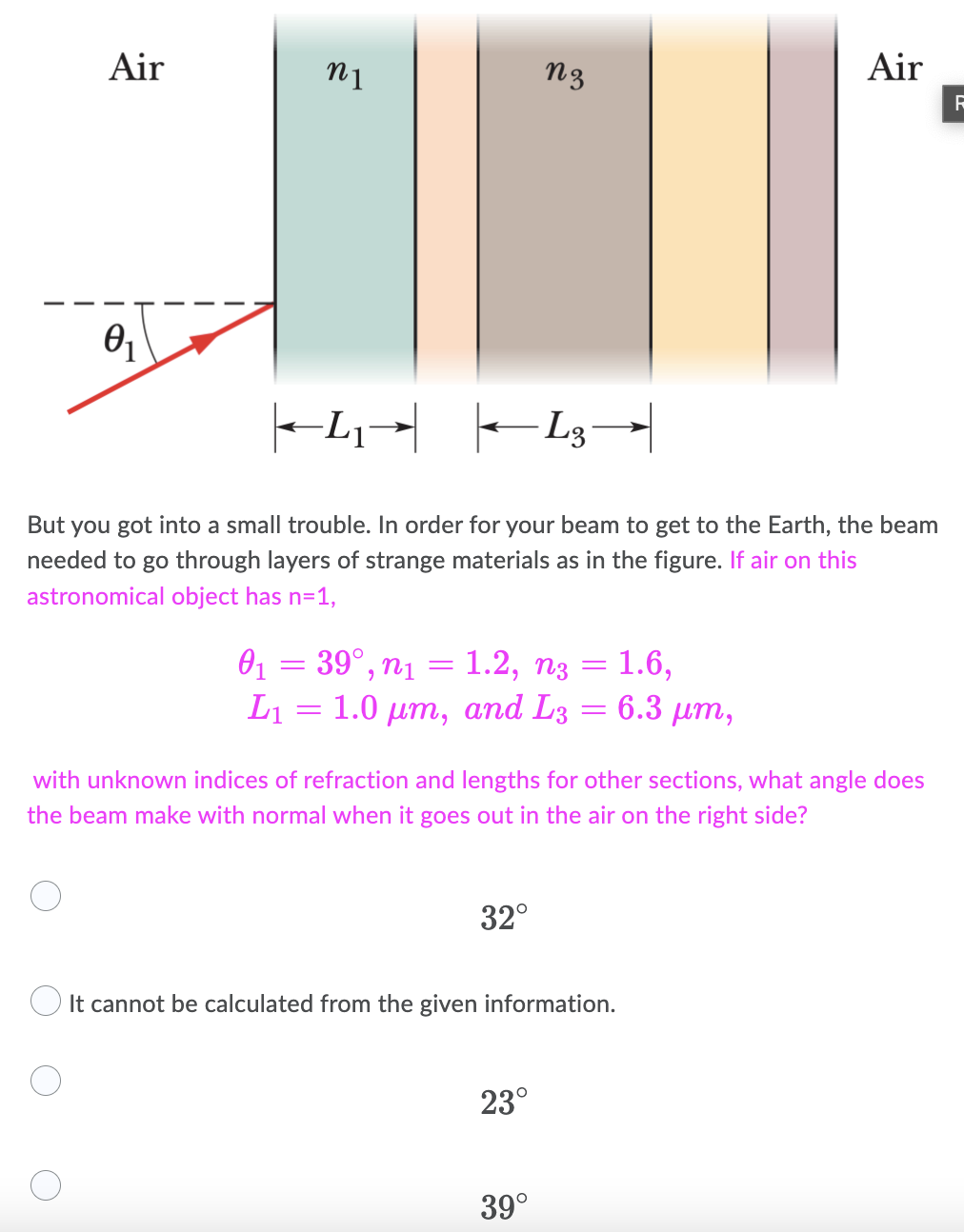

Air ni n3 Air e |-L1-L3-7 – But you got into a small trouble. In order for your beam to get to the Earth, the beam needed to go through layers of strange materials as in the figure. If air on this astronomical object has n=1, - = 01 = 39º, ni = 1.2, n3 = 1.6, L1 = 1.0 um, and L3 = 6.3 um, = with unknown indices of refraction and lengths for other sections, what angle does the beam make with normal when it goes out in the air on the right side? 32° O It cannot be calculated from the given information. 23° 39°
