please help solve this problem with parts a,b, and c thank you!
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
please help solve this problem with parts a,b, and c thank you!
please help solve this problem with parts a,b, and c
thank you!

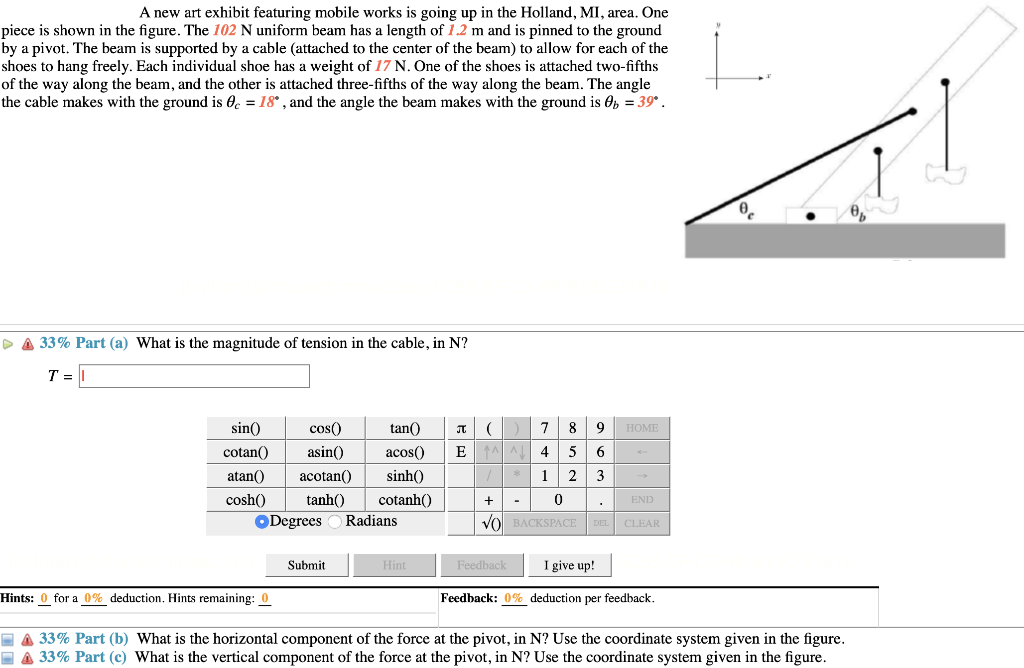

A new art exhibit featuring mobile works is going up in the Holland, MI, area. One piece is shown in the figure. The 102 N uniform beam has a length of 1.2 m and is pinned to the ground by a pivot. The beam is supported by a cable (attached to the center of the beam) to allow for each of the shoes to hang freely. Each individual shoe has a weight of 17 N. One of the shoes is attached two-fifths of the way along the beam, and the other is attached three-fifths of the way along the beam. The angle the cable makes with the ground is c = 18", and the angle the beam makes with the ground is ) = 39*. A 33% Part (a) What is the magnitude of tension in the cable, in N? T= JT ( 7 9 HOME 8 5 E 수시 시 4 6 sin cos tan cotan asin() acos atan) acotan) sinh cosh tanh) cotanh() Degrees Radians 1 2 3 END + - 0 VO BACKSPACE DEL CLEAR Submit Hint Feedback I give up! Hints: 0 for a 0% deduction. Hints remaining: 0 Feedback: 0% deduction per feedback. A 33% Part (b) What is the horizontal component of the force at the pivot, in N? Use the coordinate system given in the figure. A 33% Part (C) What is the vertical component of the force at the pivot, in N? Use the coordinate system given in the figure.
thank you!
A new art exhibit featuring mobile works is going up in the Holland, MI, area. One piece is shown in the figure. The 102 N uniform beam has a length of 1.2 m and is pinned to the ground by a pivot. The beam is supported by a cable (attached to the center of the beam) to allow for each of the shoes to hang freely. Each individual shoe has a weight of 17 N. One of the shoes is attached two-fifths of the way along the beam, and the other is attached three-fifths of the way along the beam. The angle the cable makes with the ground is c = 18", and the angle the beam makes with the ground is ) = 39*. A 33% Part (a) What is the magnitude of tension in the cable, in N? T= JT ( 7 9 HOME 8 5 E 수시 시 4 6 sin cos tan cotan asin() acos atan) acotan) sinh cosh tanh) cotanh() Degrees Radians 1 2 3 END + - 0 VO BACKSPACE DEL CLEAR Submit Hint Feedback I give up! Hints: 0 for a 0% deduction. Hints remaining: 0 Feedback: 0% deduction per feedback. A 33% Part (b) What is the horizontal component of the force at the pivot, in N? Use the coordinate system given in the figure. A 33% Part (C) What is the vertical component of the force at the pivot, in N? Use the coordinate system given in the figure.
