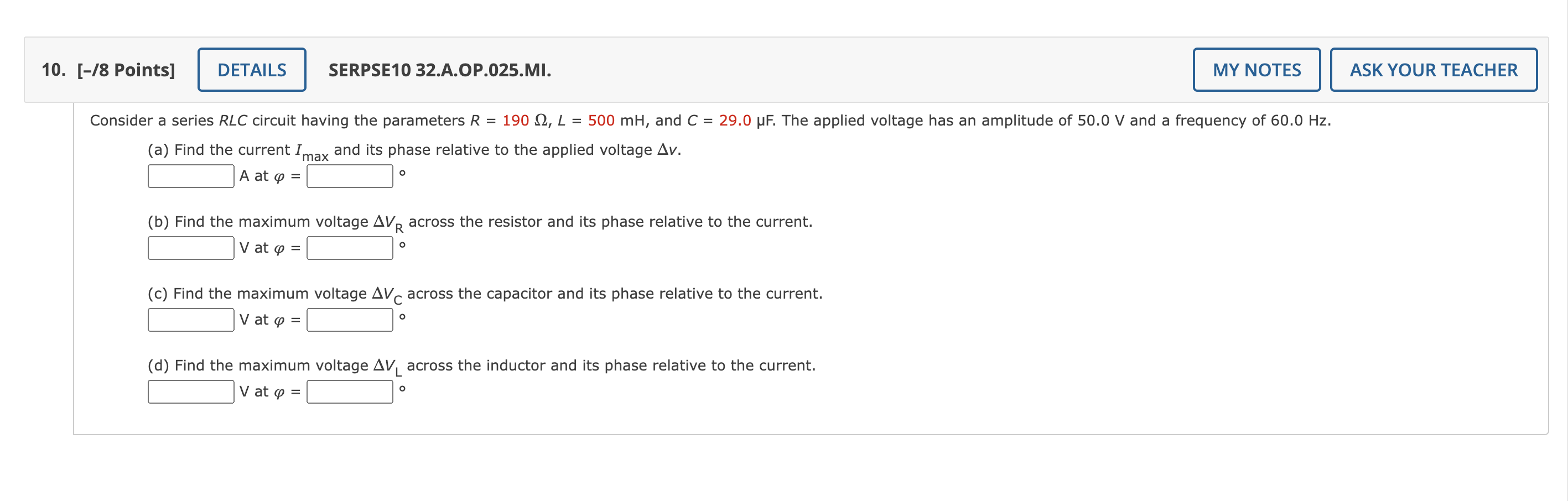

- 10 8 Points Details Serpse10 32 A Op 025 Mi My Notes Ask Your Teacher Consider A Series Rlc Circuit Having The Par 1 (105.85 KiB) Viewed 30 times
parameters R = 190 Ω, L = 500 mH,
and C = 29.0 µF. The applied voltage
has an amplitude of 50.0 V and a frequency of 60.0 Hz.
(a) Find the current Imax and its
phase relative to the applied voltage Δv.
A at 𝜑 = °
(b) Find the maximum
voltage ΔVR across the resistor and
its phase relative to the current.
V at 𝜑 = °
(c) Find the maximum
voltage ΔVC across the capacitor and
its phase relative to the current.
V at 𝜑 = °
(d) Find the maximum
voltage ΔVL across the inductor and
its phase relative to the current.
V at 𝜑 = °
10. [-/8 Points] DETAILS SERPSE10 32.A.OP.025.MI. MY NOTES ASK YOUR TEACHER Consider a series RLC circuit having the parameters R = 190 12, L = 500 mh, and C = 29.0 uF. The applied voltage has an amplitude of 50.0 V and a frequency of 60.0 Hz. (a) Find the current Imax and its phase relative to the applied voltage Av. A at p = o (b) Find the maximum voltage AVR across the resistor and its phase relative to the current. V at Q = O (C) Find the maximum voltage AVc across the capacitor and its phase relative to the current. V at g = (d) Find the maximum voltage AV, across the inductor and its phase relative to the current. V at Q = O =
