2. [-/2 Points] DETAILS SERPSE10 30.A.OP.029. MY NOTES ASK YOUR TEACHER The circuit in the figure below is located in a

[answerhappygod]

2 2 Points Details Serpse10 30 A Op 029 My Notes Ask Your Teacher The Circuit In The Figure Below Is Located In A 1 (101.57 KiB) Viewed 43 times

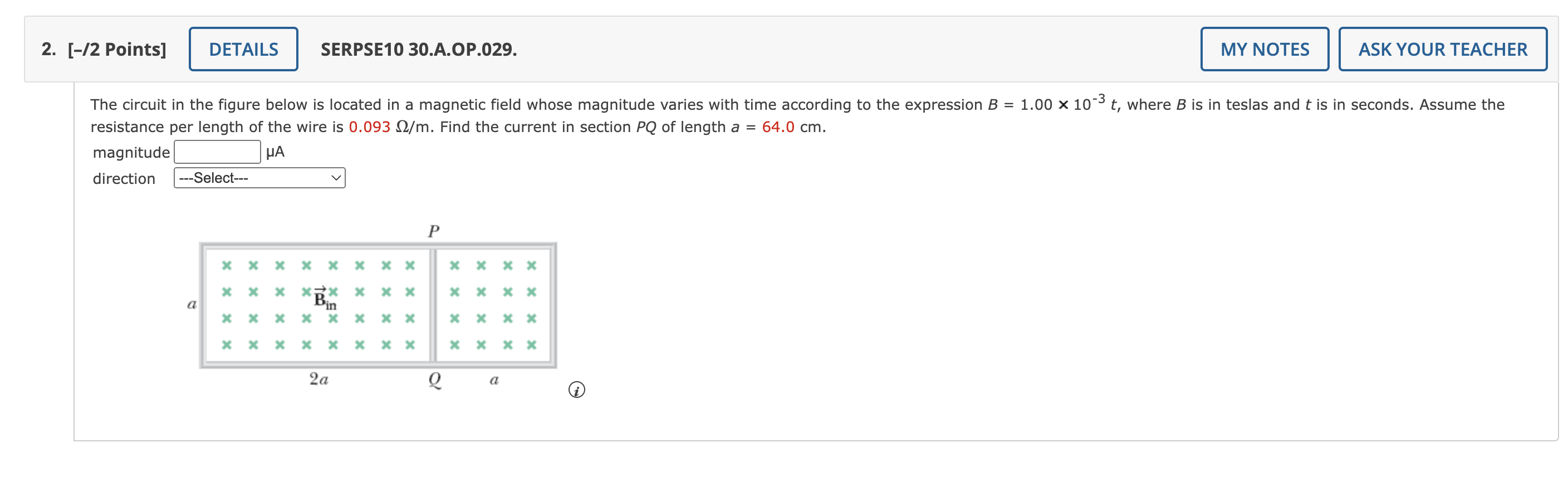

The circuit in the figure below is located in a magnetic field
whose magnitude varies with time according to the
expression B = 1.00 10-3 t, where B is
in teslas and t is in seconds. Assume the
resistance per length of the wire is 0.093 Ω/m. Find
the current in section PQ of
length a = 64.0 cm.
2. [-/2 Points] DETAILS SERPSE10 30.A.OP.029. MY NOTES ASK YOUR TEACHER The circuit in the figure below is located in a magnetic field whose magnitude varies with time according to the expression B = 1.00 x 10-3 t, where B is in teslas and t is in seconds. Assume the resistance per length of the wire is 0.093 2/m. Find the current in section PQ of length a = 64.0 cm. magnitude UA direction ---Select--- P x X X X X X X X X X X X * X x X X X X X X X X Bin X x x x x x x x X X x X x x * * * * * * * * x X x x 2a Q a
