2) The amplitude of the emf in the below circuit is 150V, while the angular frequency is 607. The resistance is 1512, th

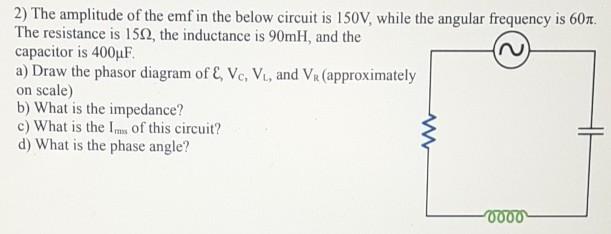

2) The amplitude of the emf in the below circuit is 150V, while the angular frequency is 607. The resistance is 1512, the inductance is 90mH, and the capacitor is 400uF. a) Draw the phasor diagram of E, Vc, V., and V (approximately on scale) b) What is the impedance? c) What is them of this circuit? d) What is the phase angle? W 0000
