(AML-2) Consider the circuit shown below, where e = 15 V, R: - 182, R2 = 342, and C=0.10 F. The capacitor is initially u

Post by answerhappygod »

Aml 2 Consider The Circuit Shown Below Where E 15 V R 182 R2 342 And C 0 10 F The Capacitor Is Initially U 1
Aml 2 Consider The Circuit Shown Below Where E 15 V R 182 R2 342 And C 0 10 F The Capacitor Is Initially U 1 (19.24 KiB) Viewed 28 times

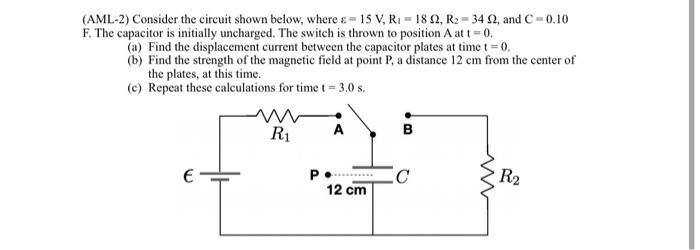

(AML-2) Consider the circuit shown below, where e = 15 V, R: - 182, R2 = 342, and C=0.10 F. The capacitor is initially uncharged. The switch is thrown to position A att = 0. (a) Find the displacement current between the capacitor plates at time t = 0. (b) Find the strength of the magnetic field at point P, a distance 12 cm from the center of the plates, at this time. (c) Repeat these calculations for time t = 3.0 s. Ri A B P 12 cm C R2
