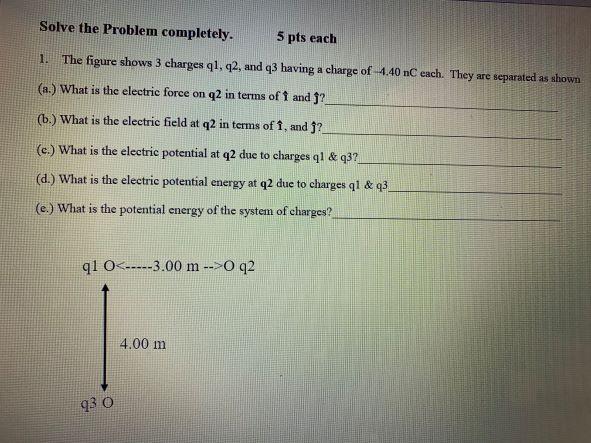

Solve the Problem completely. 5 pts each The figure shows 3 charges q1, 42, and q3 having a charge of 4.40 nC each. They are separated as shown (a.) What is the electric force on q2 in terms of 1 and ? (6.) What is the electric field at q2 in terms of 1, and ? (e.) What is the electric potential at q2 due to charges ql & q3? (d.) What is the electric potential energy at q2 due to charges qi &q3 (e.) What is the potential energy of the system of charges? q1 0<-----3.00 m --> 22 4.00 m 930
1116 Spring 2022x Protected View o Search (Alt+Q3 ulas Data Review View Developer Help ther can contain Viruses. Unless you need to edit it's safer to stay in Protected View Enable Editing A B с D E F G H 1. The figure shows 3 charges ql, 92, and q3 having a charge of -4.40 nC each. They are separated as shown (a) What is the electric force on 22 in terms of i andj? 6.) What is the electric field at q2 in terms of i and j? (c) What is the electric potential at 42 due to charges ql & q3? (a) What is the electric potential energy at 92 due to charges ql & q3 (e.) What is the potential energy of the system of charges? 2. Complete a total table for this capacitor circuit bel all JUNCTIONS (to 3 decimal places)
