S w R R I С 35. In the circuit represented above, resistors R and Ry , capacitor C, and open switch S are connected to a

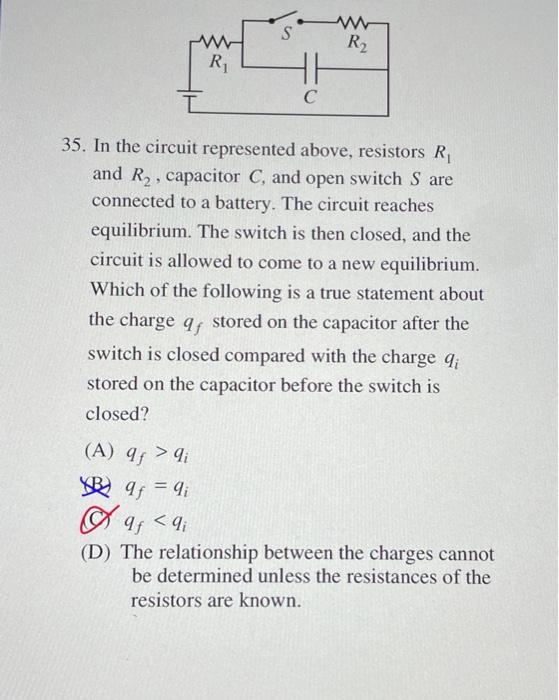

S w R R I С 35. In the circuit represented above, resistors R and Ry , capacitor C, and open switch S are connected to a battery. The circuit reaches equilibrium. The switch is then closed, and the circuit is allowed to come to a new equilibrium. Which of the following is a true statement about the charge 9, stored on the capacitor after the switch is closed compared with the charge q; stored on the capacitor before the switch is closed? (A) 95> WB 9 = 9; O 9<9; (D) The relationship between the charges cannot be determined unless the resistances of the resistors are known.
