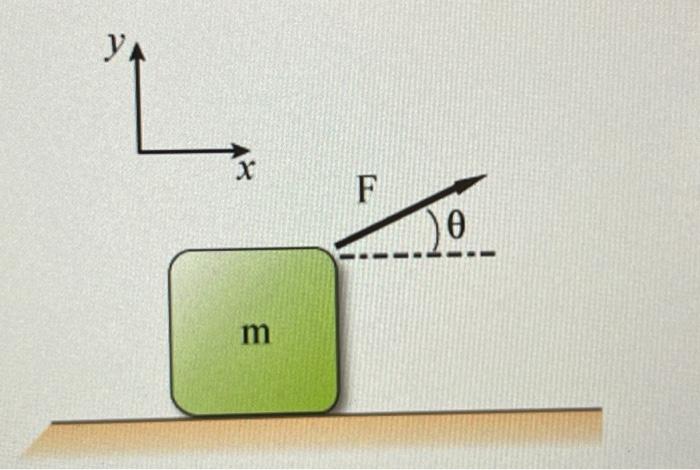

(18%) Problem 9: A force is acting on a block with a magnitude of F = 119 N. The force makes an angle of @ = 17° with respect to the horizontal, as shown in the figure.
y X F 0 m
25% Part (b) Write an expression for the component of the force in the y-direction, Fy, in terms of the variables given in the problem statement. Grade Summary Deductions Potential 0 100 Cabelon
25% Part (C) Write the force Fas vector, in terms of the variables given in the problem statement. Include the unit vectors i and j. F= anno
A 25% Part (d) If the block has a mass of m= 5 kg and the coefficient of friction between the floor and block is =05, what is the block's acceleration, in meters per square second? Grade Summary Deductions 05 Potential 10046 d
