4. Consider the circuit shown to the right. Each of the branch currents have been labeled. There is one unknown eif (8),

Post by answerhappygod »

4 Consider The Circuit Shown To The Right Each Of The Branch Currents Have Been Labeled There Is One Unknown Eif 8 1
4 Consider The Circuit Shown To The Right Each Of The Branch Currents Have Been Labeled There Is One Unknown Eif 8 1 (20.69 KiB) Viewed 35 times

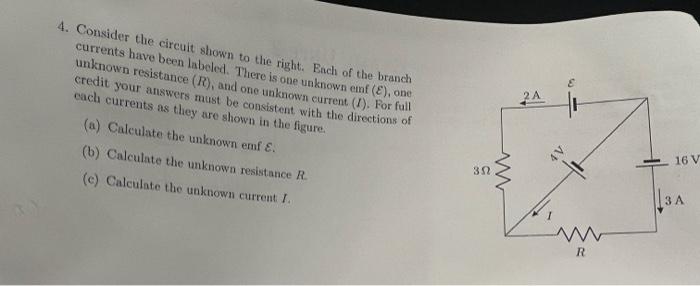

4. Consider the circuit shown to the right. Each of the branch currents have been labeled. There is one unknown eif (8), one unknown resistance (R), and one unknown current (1). For full credit your answers must be consistent with the directions of each currents as they are shown in the figure (a) Calculate the unknown emf €. (6) Calculate the unknown resistance R. (c) Calculate the unknown current I. 2A 16 V 3Ω 3 A R
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
