Given the following components: L = 150 m C = 1.5 UF R = 12 E = 2 V . . Use no more than 3 of the 4 components with the

[answerhappygod]

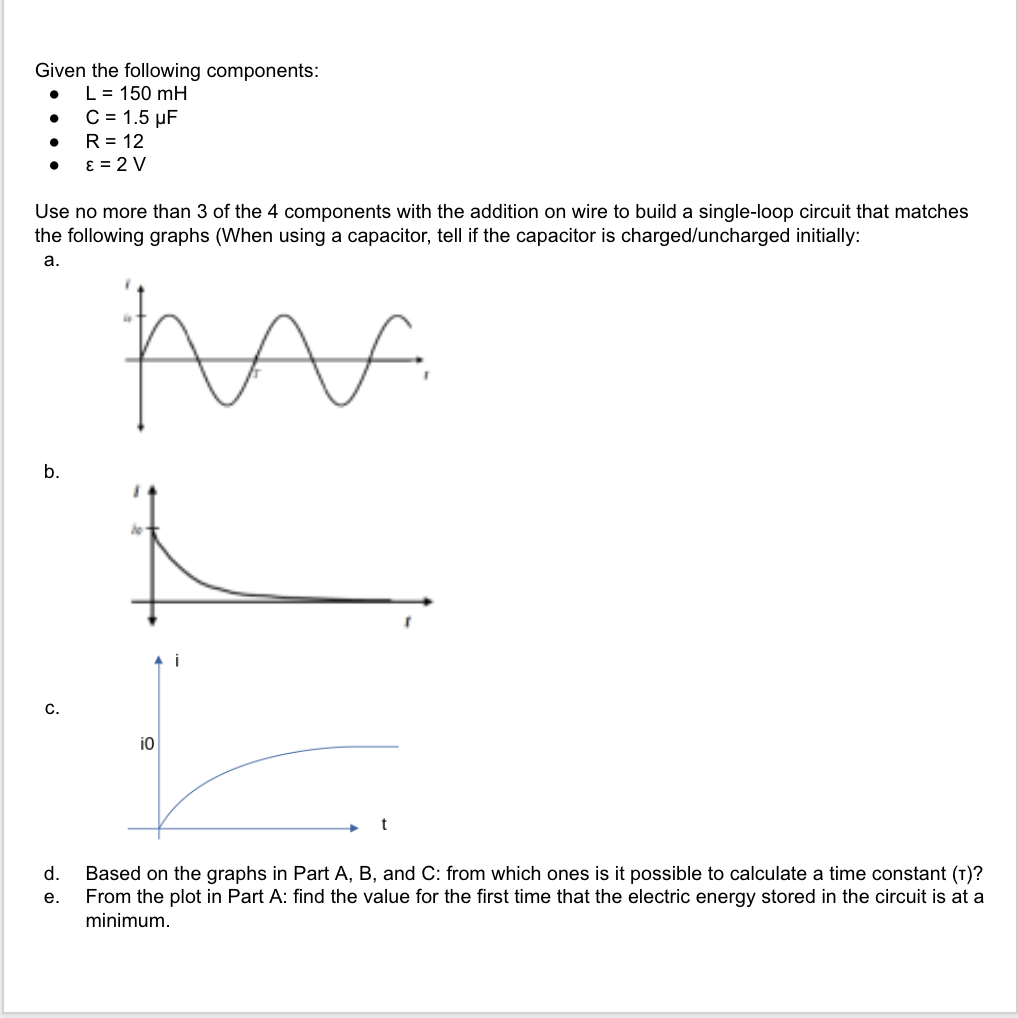

Given The Following Components L 150 M C 1 5 Uf R 12 E 2 V Use No More Than 3 Of The 4 Components With The 1 (80.18 KiB) Viewed 36 times

Given the following components: L = 150 m C = 1.5 UF R = 12 E = 2 V . . Use no more than 3 of the 4 components with the addition on wire to build a single-loop circuit that matches the following graphs (When using a capacitor, tell if the capacitor is charged/uncharged initially: a. АА. v b. C. iO t d. e. Based on the graphs in Part A, B, and C: from which ones is it possible to calculate a time constant (1)? From the plot in Part A: find the value for the first time that the electric energy stored in the circuit is at a minimum.
