Consider the capacitor arrangement in the figure, with C1 = 2.9 MF, C2 = 1.8 uF and C3=2.4 °F and a potential difference

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the capacitor arrangement in the figure, with C1 = 2.9 MF, C2 = 1.8 uF and C3=2.4 °F and a potential difference

Post by answerhappygod »

Consider The Capacitor Arrangement In The Figure With C1 2 9 Mf C2 1 8 Uf And C3 2 4 F And A Potential Difference 1
Consider The Capacitor Arrangement In The Figure With C1 2 9 Mf C2 1 8 Uf And C3 2 4 F And A Potential Difference 1 (44.82 KiB) Viewed 19 times

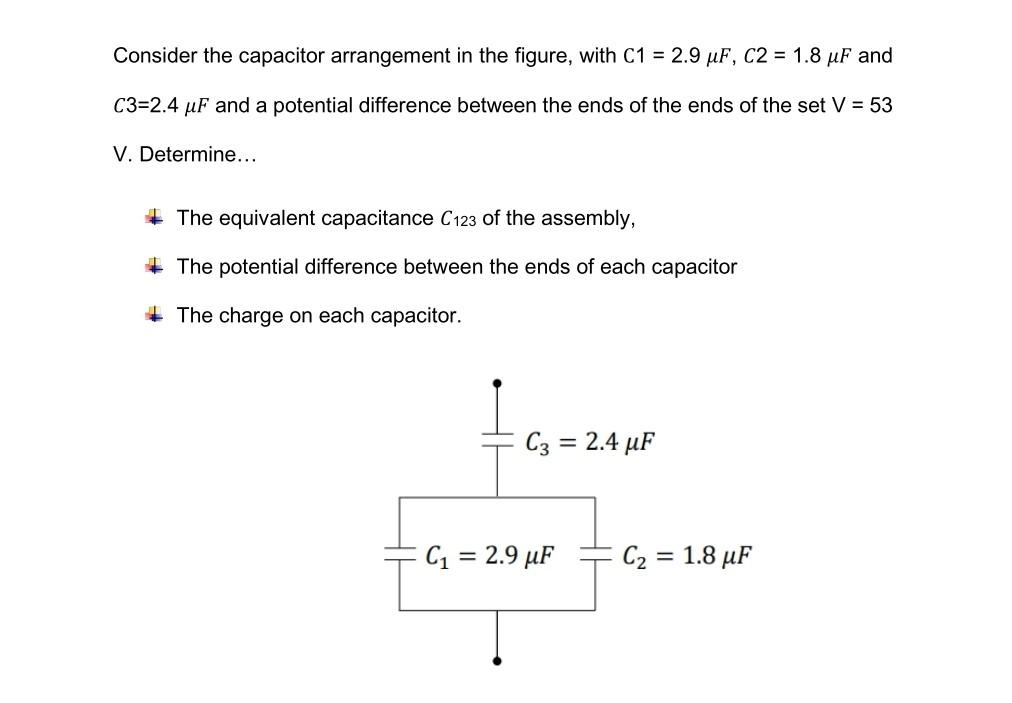

Consider the capacitor arrangement in the figure, with C1 = 2.9 MF, C2 = 1.8 uF and C3=2.4 °F and a potential difference between the ends of the ends of the set V = 53 V. Determine... + The equivalent capacitance C123 of the assembly, + The potential difference between the ends of each capacitor The charge on each capacitor. C3 = 2.4 uF = C1 = 2.9 uF C2 = 1.8 uF =
