In a series oscillating RLC circuit, R = 15.5 12, C = 31.3 uF, L = 9.78 mH, and E = Emsinwat with Em = 45.0 V and wd = 3

[answerhappygod]

In A Series Oscillating Rlc Circuit R 15 5 12 C 31 3 Uf L 9 78 Mh And E Emsinwat With Em 45 0 V And Wd 3 1 (35.3 KiB) Viewed 45 times

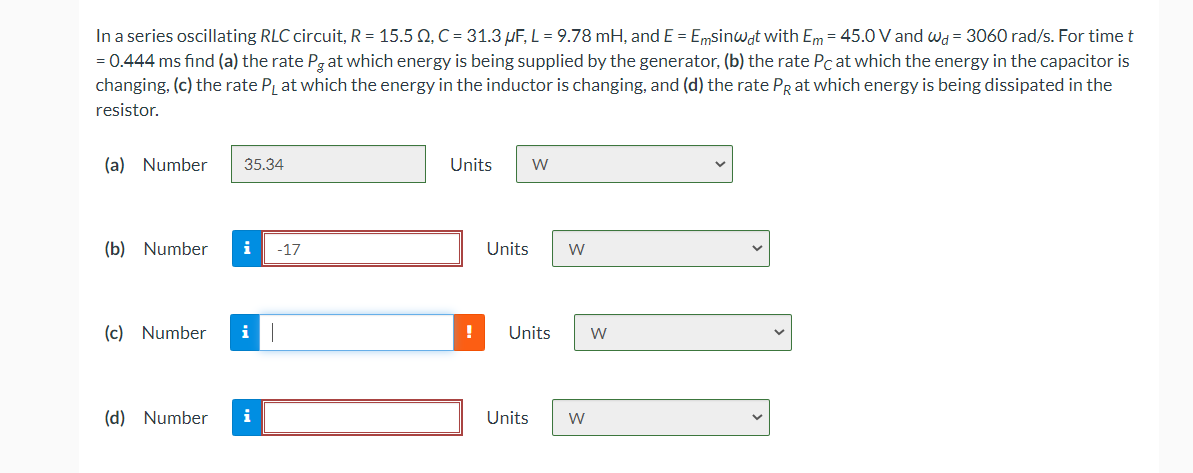

In a series oscillating RLC circuit, R = 15.5 12, C = 31.3 uF, L = 9.78 mH, and E = Emsinwat with Em = 45.0 V and wd = 3060 rad/s. For timet = 0.444 ms find (a) the rate Pg at which energy is being supplied by the generator, (b) the rate Pc at which the energy in the capacitor is changing, (c) the rate PL at which the energy in the inductor is changing, and (d) the rate PR at which energy is being dissipated in the resistor. (a) Number 35.34 Units w (b) Number i -17 Units w (c) Number i Units W (d) Number i Units W
