b. A circuit includes an alternating current voltage source, a 3.5 mH inductor and a 18122 resistor in series. The frequ

Post by answerhappygod »

B A Circuit Includes An Alternating Current Voltage Source A 3 5 Mh Inductor And A 18122 Resistor In Series The Frequ 1
B A Circuit Includes An Alternating Current Voltage Source A 3 5 Mh Inductor And A 18122 Resistor In Series The Frequ 1 (30.34 KiB) Viewed 49 times

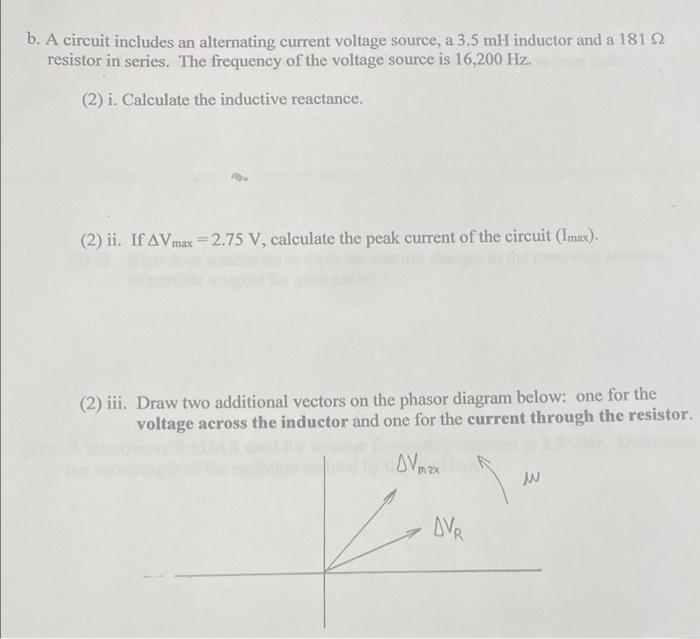

b. A circuit includes an alternating current voltage source, a 3.5 mH inductor and a 18122 resistor in series. The frequency of the voltage source is 16,200 Hz, (2) i. Calculate the inductive reactance. (2) ii. If AVmax = 2.75 V, calculate the peak current of the circuit (Imax). (2) iii. Draw two additional vectors on the phasor diagram below: one for the voltage across the inductor and one for the current through the resistor. AVmax OVE
