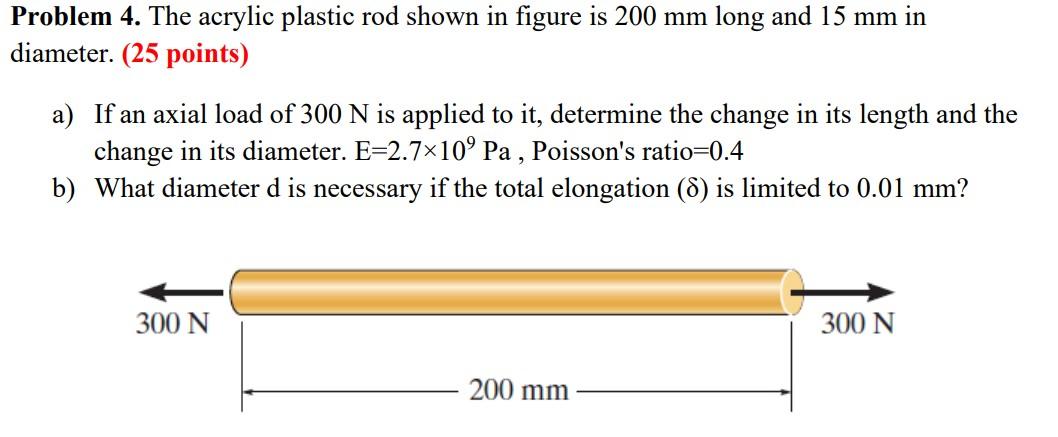

The acrylic plastic rod shown in figure is 200 mm long and 15 mm
in diameter. (25 points) a) If an axial load of 300 N is applied to
it, determine the change in its length and the change in its
diameter. E=2.7×109 Pa , Poisson's ratio=0.4 b) What diameter d is
necessary if the total elongation (δ) is limited to 0.01 mm?

The Acrylic Plastic Rod Shown In Figure Is 200 Mm Long And 15 Mm In Diameter 25 Points A If An Axial Load Of 300 N I 1 (52 KiB) Viewed 28 times

THANK YOU
Problem 4. The acrylic plastic rod shown in figure is 200 mm long and 15 mm in diameter. (25 points) a) If an axial load of 300 N is applied to it, determine the change in its length and the change in its diameter. E=2.7x10° Pa , Poisson's ratio=0.4 b) What diameter d is necessary if the total elongation (8) is limited to 0.01 mm? 300 N 300 N 200 mm
