3 A galvanometer has an internal resistance of (RG = 40), and a maximum deflection current of (25mA). Find the value of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3 A galvanometer has an internal resistance of (RG = 40), and a maximum deflection current of (25mA). Find the value of

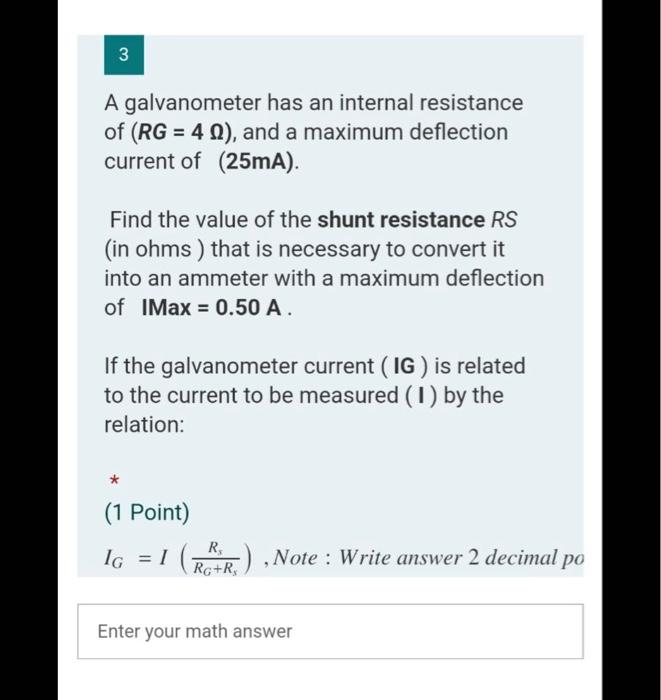

3 A galvanometer has an internal resistance of (RG = 40), and a maximum deflection current of (25mA). Find the value of the shunt resistance RS (in ohms ) that is necessary to convert it into an ammeter with a maximum deflection of IMax = 0.50 A. If the galvanometer current (IG) is related to the current to be measured (1) by the relation: * (1 Point) Ig = 1 (RAR), Note : Write answer 2 decimal po Enter your math answer
