- Q10 And 11 1 (81.15 KiB) Viewed 46 times
Q10 , and 11
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q10 , and 11
Q10 , and 11

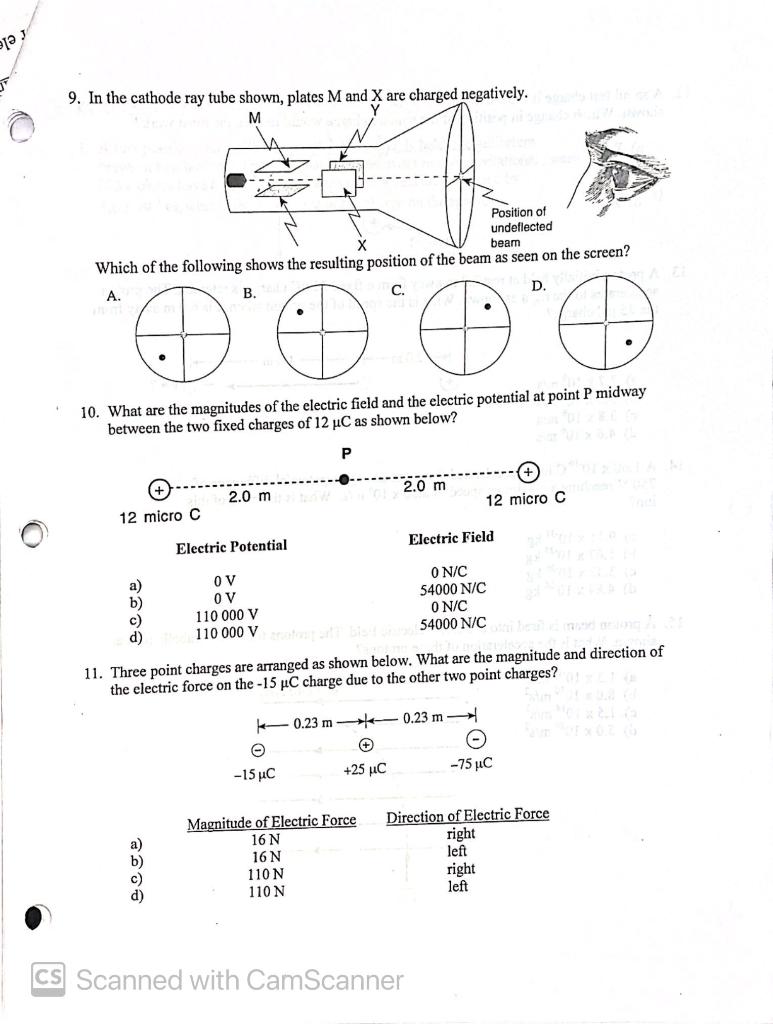

10 9. In the cathode ray tube shown, plates M and X are charged negatively. M Position of undeflected beam Which of the following shows the resulting position of the beam as seen on the screen? A. B. C. D O 10. What are the magnitudes of the electric field and the electric potential at point P midway between the two fixed charges of 12 uC as shown below? Р 2.0 m 2.0 m 12 micro C 12 micro C Electric Field Electric Potential a) b) c) d) OV OV 110 000 V 110 000 V ON/C 54000 N/C ON/C 54000 N/C 11. Three point charges are arranged as shown below. What are the magnitude and direction of the electric force on the -15 C charge due to the other two point charges? 0.23 m -0.23 m -15 C +25 C -75 μC Magnitude of Electric Force 16 N 16N 110 N 110 N Direction of Electric Force right left right left CS Scanned with CamScanner
10 9. In the cathode ray tube shown, plates M and X are charged negatively. M Position of undeflected beam Which of the following shows the resulting position of the beam as seen on the screen? A. B. C. D O 10. What are the magnitudes of the electric field and the electric potential at point P midway between the two fixed charges of 12 uC as shown below? Р 2.0 m 2.0 m 12 micro C 12 micro C Electric Field Electric Potential a) b) c) d) OV OV 110 000 V 110 000 V ON/C 54000 N/C ON/C 54000 N/C 11. Three point charges are arranged as shown below. What are the magnitude and direction of the electric force on the -15 C charge due to the other two point charges? 0.23 m -0.23 m -15 C +25 C -75 μC Magnitude of Electric Force 16 N 16N 110 N 110 N Direction of Electric Force right left right left CS Scanned with CamScanner
