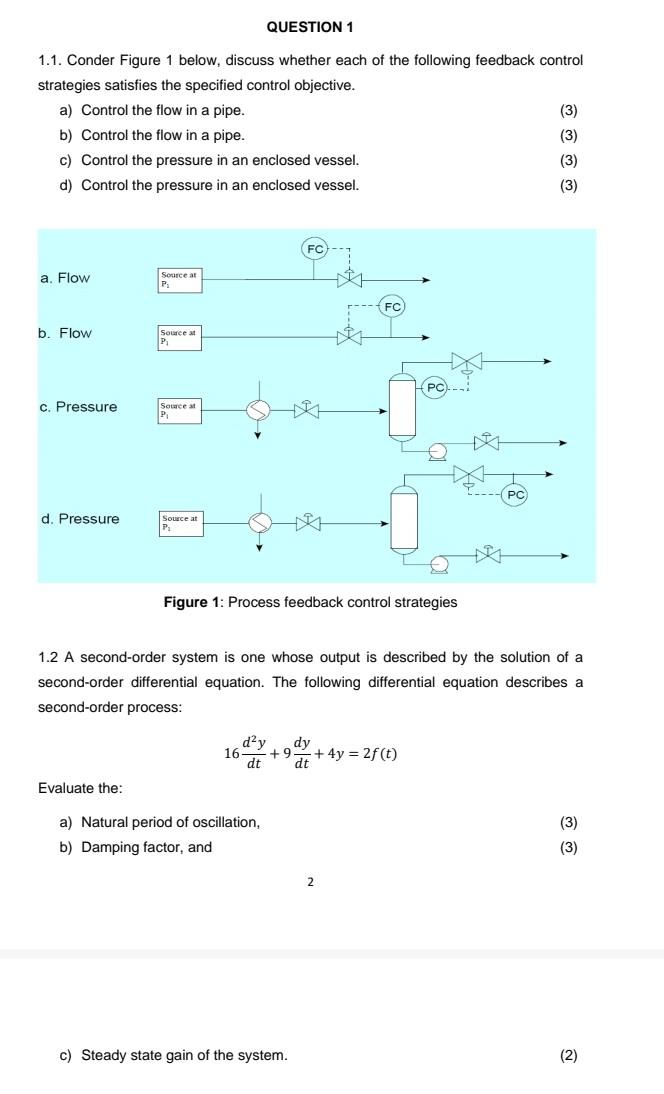

QUESTION 1 1.1. Conder Figure 1 below, discuss whether each of the following feedback control strategies satisfies the specified control objective. a) Control the flow in a pipe. (3) b) Control the flow in a pipe. (3) c) Control the pressure in an enclosed vessel. (3) d) Control the pressure in an enclosed vessel. (3) FC a. Flow Source at P. FC b. Flow Source P1 PC) c. Pressure Souces P PC d. Pressure Source at P. 文 Figure 1: Process feedback control strategies 1.2 A second-order system is one whose output is described by the solution of a second-order differential equation. The following differential equation describes a second-order process: - d'y dy 16 +9+4y = 2f(t) - + dt dt Evaluate the: a) Natural period of oscillation, b) Damping factor, and ) (3) (3) 2 c) Steady state gain of the system. (2) )
