Q1. A hydrocarbon stream (AbuDhabi) containing 26% - ethane, 21% - propane, 34% - į-butane and 19% -n-butane (volume fra

[answerhappygod]

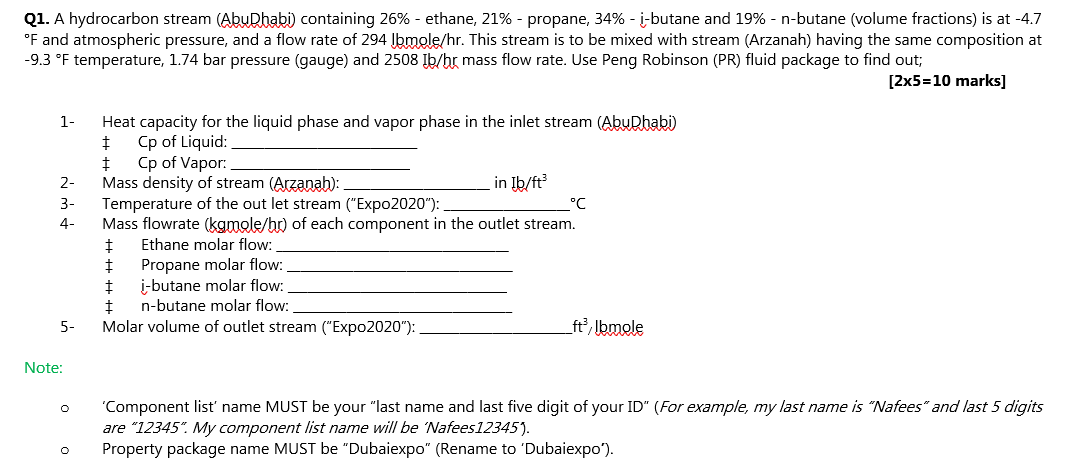

Q1 A Hydrocarbon Stream Abudhabi Containing 26 Ethane 21 Propane 34 I Butane And 19 N Butane Volume Fra 1 (41.48 KiB) Viewed 31 times

Q1. A hydrocarbon stream (AbuDhabi) containing 26% - ethane, 21% - propane, 34% - į-butane and 19% -n-butane (volume fractions) is at -4.7 °F and atmospheric pressure, and a flow rate of 294 lbmole/hr. This stream is to be mixed with stream (Arzanah) having the same composition at -9.3 °F temperature, 1.74 bar pressure (gauge) and 2508 lb/hr mass flow rate. Use Peng Robinson (PR) fluid package to find out; [2x5=10 marks] 1- 2- 3- 4- Heat capacity for the liquid phase and vapor phase in the inlet stream (AbuDhabi) I Cp of Liquid: 1 Cp of Vapor: Mass density of stream (Arzanah): in lb/ft Temperature of the outlet stream ("Expo 2020"): °C Mass flowrate (kgmole/ho) of each component in the outlet stream. 1 Ethane molar flow: 1 Propane molar flow: I i-butane molar flow: n-butane molar flow: Molar volume of outlet stream ("Expo 2020"): ft, Ibmele 5- Note: Component list' name MUST be your "last name and last five digit of your ID" (For example, my last name is "Nafees" and last 5 digits are “12345". My component list name will be "Nafees12345). Property package name MUST be "Dubaiexpo" (Rename to 'Dubaiexpo'). o
