3. In Compton scattering, the energy Escat of a scattered x-ray photon is angular dependent, described by Escat = E. E.

[answerhappygod]

3 In Compton Scattering The Energy Escat Of A Scattered X Ray Photon Is Angular Dependent Described By Escat E E 1 (117.88 KiB) Viewed 26 times

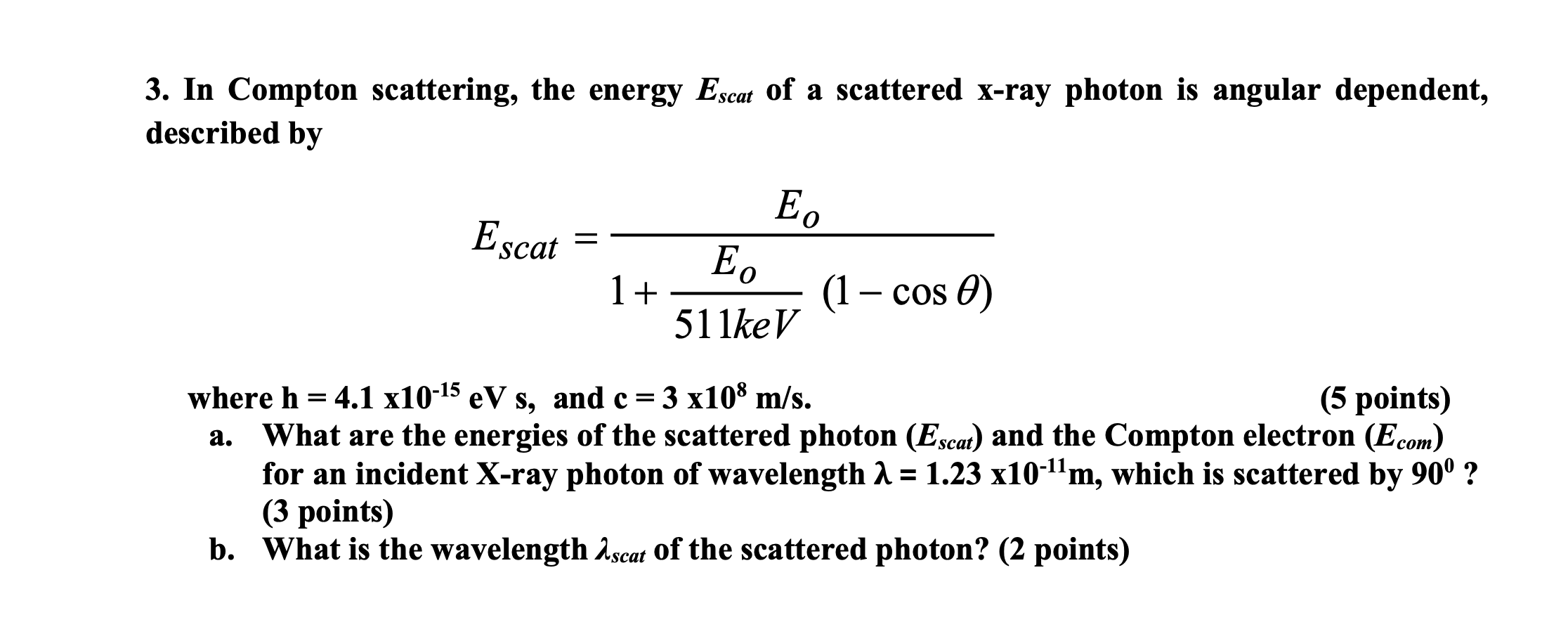

3. In Compton scattering, the energy Escat of a scattered x-ray photon is angular dependent, described by Escat = E. E. (1 – cos 6) 511ke V 1+ = where h = 4.1 x10-15 eV s, and c=3 x108 m/s. (5 points) a. What are the energies of the scattered photon (Escat) and the Compton electron (Ecom) for an incident X-ray photon of wavelength 2 = 1.23 x10-11m, which is scattered by 90° ? (3 points) b. What is the wavelength ascat of the scattered photon? (2 points)
