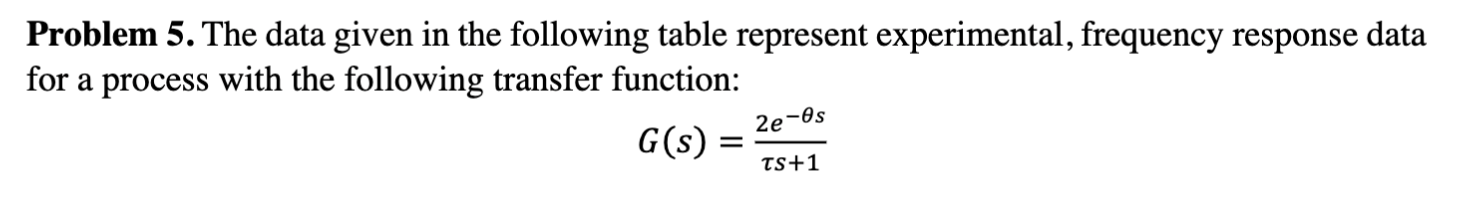

Problem 5. The data given in the following table represent experimental, frequency response data for a process with the following transfer function: G(s) = 2e-os = TS+1
(a) Choose a reasonable data point to estimate time constant t and time delay 0 in the transfer function G(s). 2(1-5) (b) If this process is connected to another process with a transfer function of whose block diagram is shown below, what would be the output response y'(t) for a sinusoidal input a change of u'(t) = sin (t)? S = U'(s) 2(1 –s) Y'(s) G(S) S
Frequency, cycles/min ARN Phase angle, deg 0.01 1.0 0.0 0.02 1.0 -2.0 0.04 1.0 -6.0 0.06 1.0 -7.0 0.08 1.0 -8.5 0.10 1.0 -11.0 0.15 1.0 -17.0 0.20 1.0 -23.0 0.30 1.0 -36.0 0.40 0.98 -48.0 0.60 0.94 -73.0 0.80 0.88 -96.0 1.00 0.83 -112.0 1.50 0.71 -180.0 2.00 0.61 -239.0 4.00 0.37 6.00 0.26 8.00 0.20 10.00 0.16 20.00 0.080 40.00 0.041
