A heat generating device is insulated, with one circular face (D = 15 mm) exposed to air at 25°C with convection coeffic

Post by answerhappygod »

A Heat Generating Device Is Insulated With One Circular Face D 15 Mm Exposed To Air At 25 C With Convection Coeffic 1
A Heat Generating Device Is Insulated With One Circular Face D 15 Mm Exposed To Air At 25 C With Convection Coeffic 1 (48.68 KiB) Viewed 61 times

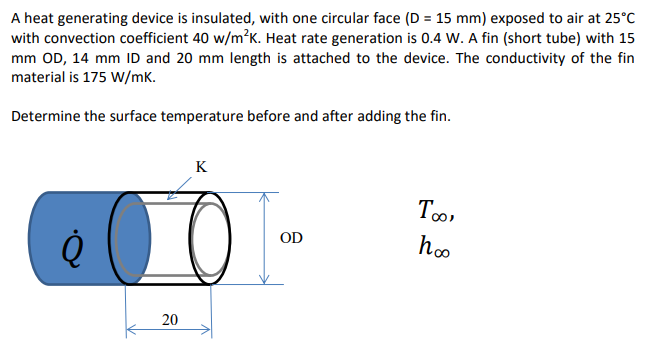

A heat generating device is insulated, with one circular face (D = 15 mm) exposed to air at 25°C with convection coefficient 40 w/m²K. Heat rate generation is 0.4 W. A fin (short tube) with 15 mm OD, 14 mm ID and 20 mm length is attached to the device. The conductivity of the fin material is 175 W/mK. Determine the surface temperature before and after adding the fin. K To, hoo 10 OD o 20
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
