a %3D = Back 5. Consider the liquid-level system with a linear resistance (R) and area of cross section (A) with a PI co

[answerhappygod]

A 3d Back 5 Consider The Liquid Level System With A Linear Resistance R And Area Of Cross Section A With A Pi Co 1 (239.92 KiB) Viewed 100 times

need step by step and proper hand written answer sir / ma'am.
explain part
a)2 m
b) 2.5 m
in detail form

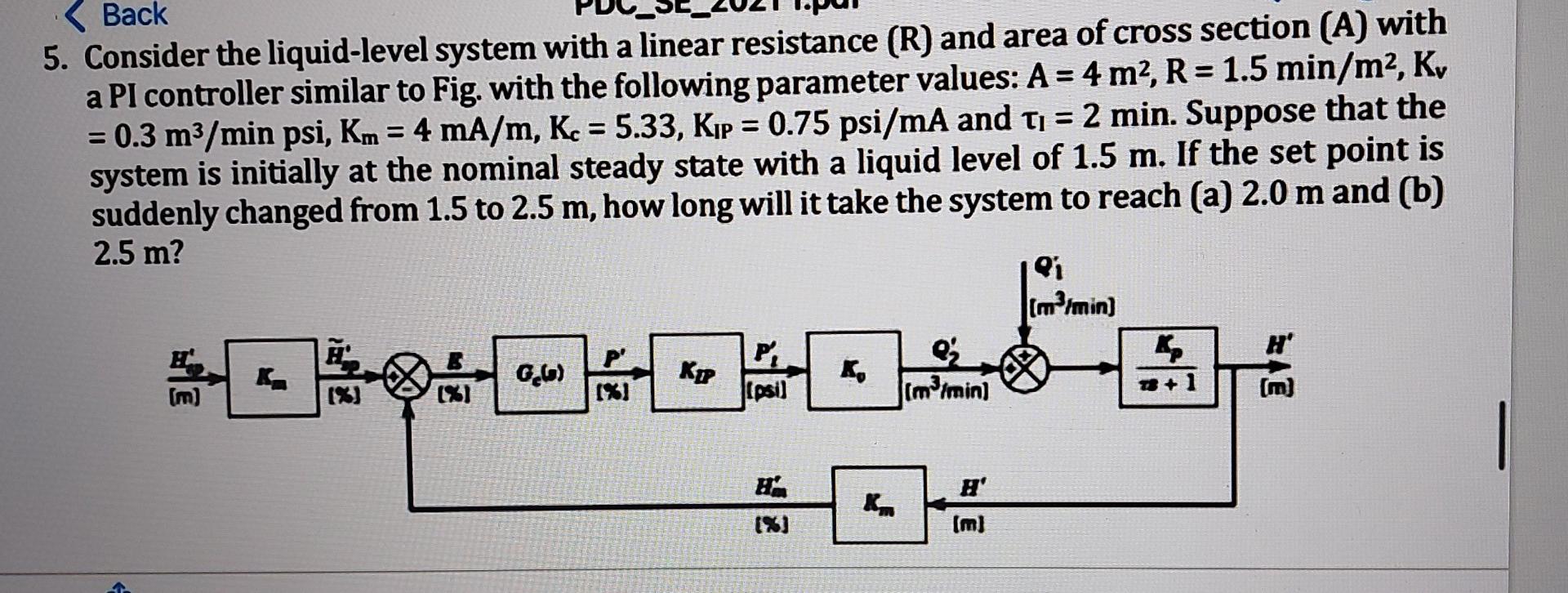

a %3D = Back 5. Consider the liquid-level system with a linear resistance (R) and area of cross section (A) with a PI controller similar to Fig. with the following parameter values: A = 4 m2, R = 1.5 min/m2, Ky = 0.3 m3/min psi, Km = 4 mA/m, Kc = 5.33, Kıp = 0.75 psi/mA and ti = 2 min. Suppose that the system is initially at the nominal steady state with a liquid level of 1.5 m. If the set point is suddenly changed from 1.5 to 2.5 m, how long will it take the system to reach (a) 2.0 m and (b) 2.5 m? i [[mmin) G K. ) K 1+ HEPPACHHA | ' K 151
