Remember to draw your system and state your assumptions where applicable. Start with equations from the equation and dat

Post by answerhappygod »

Remember to draw your system and state your assumptions where
applicable. Start with equations from the equation and data
booklet. Simplify based upon assumptions.
Remember To Draw Your System And State Your Assumptions Where Applicable Start With Equations From The Equation And Dat 1
Remember To Draw Your System And State Your Assumptions Where Applicable Start With Equations From The Equation And Dat 1 (129.29 KiB) Viewed 42 times

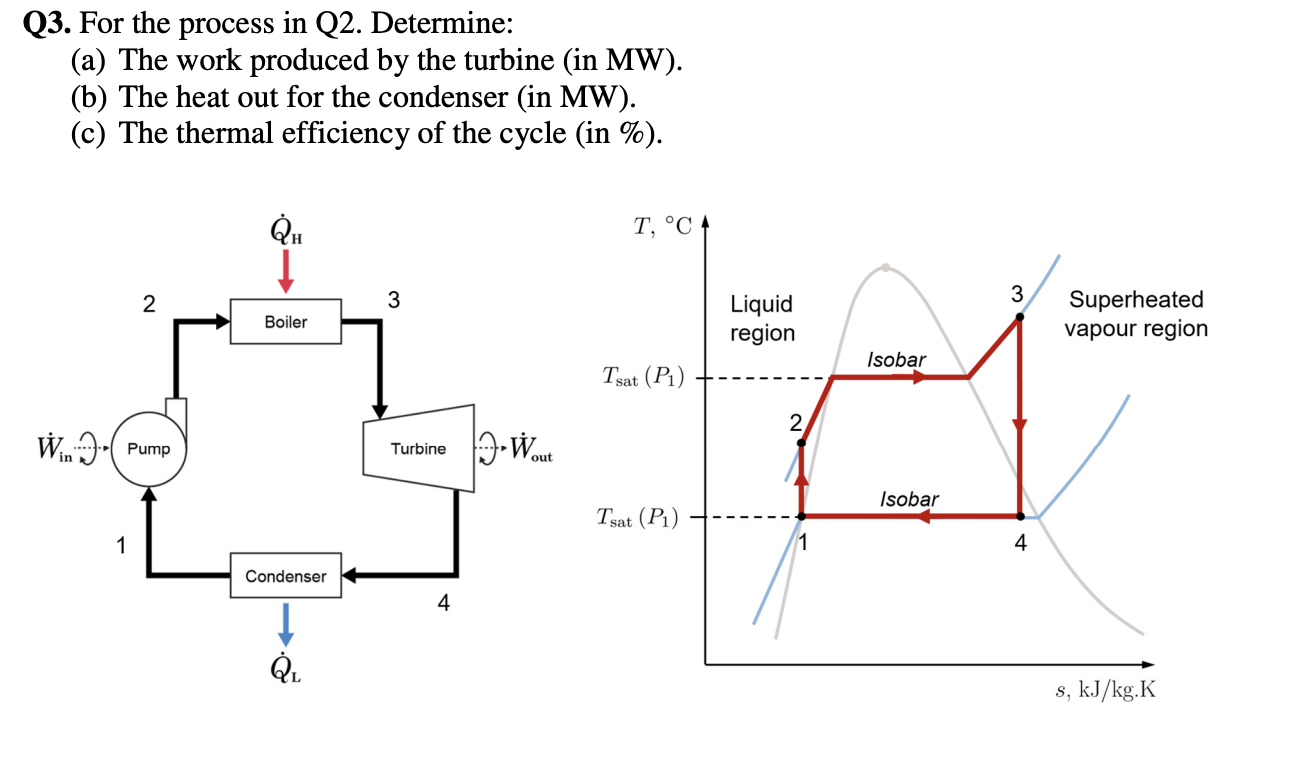

Q3. For the process in Q2. Determine: (a) The work produced by the turbine (in MW). (b) The heat out for the condenser (in MW). (c) The thermal efficiency of the cycle (in %). T, °C 2 3 3 Boiler Liquid region Superheated vapour region Isobar Tsat (P) 2 Wina Pump Turbine Wout Isobar Tsat (P1) 1 1 4 Condenser 4 Qi s, kJ/kg.K
