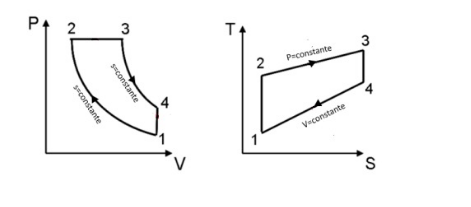

Consider the gas power cycle for a reciprocating machine and
described in the diagram.
Consider The Gas Power Cycle For A Reciprocating Machine And Described In The Diagram Considering The Assumptions Of St 1 (20.57 KiB) Viewed 41 times

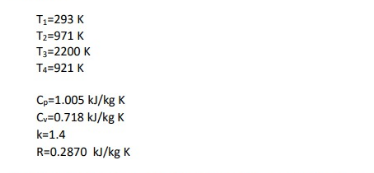

Considering the assumptions of standard air, constant specific
heats, and the following cycle information, calculate the net work
of the cycle in units of energy.
Consider The Gas Power Cycle For A Reciprocating Machine And Described In The Diagram Considering The Assumptions Of St 2 (26.04 KiB) Viewed 41 times
PA 2 3 T 3 Peconstante 2 Seconstante sconstante Veconstante 1 S
T=293 K T2=971 K T3=2200 K Ta=921 K Cp=1.005 kJ/kg K Cy=0.718 kJ/kg K k=1.4 R=0.2870 kJ/kg K
