= = Helium steadily flows out of a reservoir with pressure P. =10 bar and temperature To = 293 K through a converging-di

[answerhappygod]

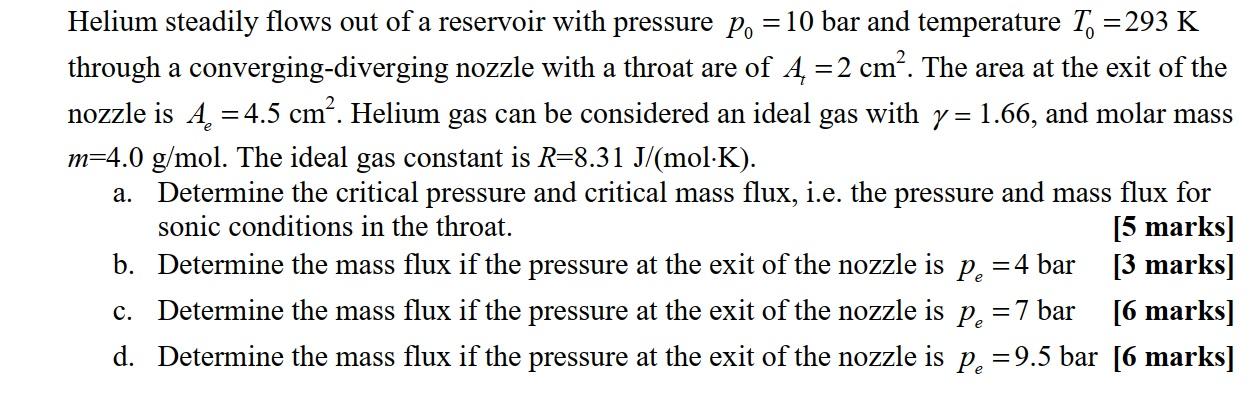

Helium Steadily Flows Out Of A Reservoir With Pressure P 10 Bar And Temperature To 293 K Through A Converging Di 1 (97.45 KiB) Viewed 60 times

= = Helium steadily flows out of a reservoir with pressure P. =10 bar and temperature To = 293 K through a converging-diverging nozzle with a throat are of Æ = 2 cm². The area at the exit of the nozzle is Ą. = 4.5 cm². Helium gas can be considered an ideal gas with y = 1.66, and molar mass m=4.0 g/mol. The ideal gas constant is R=8.31 J/(mol.K). a. Determine the critical pressure and critical mass flux, i.e. the pressure and mass flux for sonic conditions in the throat. [5 marks] b. Determine the mass flux if the pressure at the exit of the nozzle is pe = 4 bar [3 marks] c. Determine the mass flux if the pressure at the exit of the nozzle is pe = 7 bar [6 marks] d. Determine the mass flux if the pressure at the exit of the nozzle is pe =9.5 bar [6 marks] —
