10 Question 10 points A jacketed tank is used to cool a pure process liquid. The liquid enters the vessel at a flow rate

[answerhappygod]

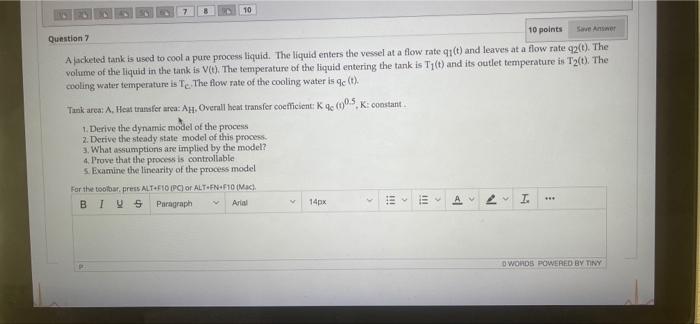

10 Question 10 Points A Jacketed Tank Is Used To Cool A Pure Process Liquid The Liquid Enters The Vessel At A Flow Rate 1 (25.74 KiB) Viewed 43 times

10 Question 10 points A jacketed tank is used to cool a pure process liquid. The liquid enters the vessel at a flow rate (t) and leaves at a flow rate 42(). The volume of the liquid in the tank is VI). The temperature of the liquid entering the tank is Ty(t) and its outlet temperature is T2(t). The cooling water temperature is Te. The flow rate of the cooling water is 9c (t). Tank area: A. Heat transfer arca: All Overall heat transfer coefficient: K 4 (00.5 K: constant 1. Derive the dynamic model of the process 2. Derive the steady state model of this process. 3. What assumptions are implied by the model? 4. Prove that the process is controllable 5 Examine the linearity of the process model For the topress ALT F10 PC) or ALTHEN F10 (Mac). BIWS Paragraph 14px C. !!! + I. ... Arial int O WORDS POWERED BY TINY
