1.SS An electrically heated stirred tank system of section 2.4.3 (page 23) of the Textbook is modeled by the following s

[answerhappygod]

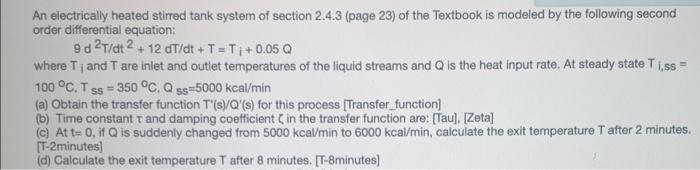

1 Ss An Electrically Heated Stirred Tank System Of Section 2 4 3 Page 23 Of The Textbook Is Modeled By The Following S 1 (21.38 KiB) Viewed 58 times

1.SS An electrically heated stirred tank system of section 2.4.3 (page 23) of the Textbook is modeled by the following second order differential equation: 9d2T/dt 2 + 12 dT/dt +T=T1+0.05 Q where Ti and T are inlet and outlet temperatures of the liquid streams and Q is the heat input rate. At steady state T 100 °C. T ss = 350 °C. ss5000 kcal/min (a) Obtain the transfer function T'(s)/Q'(s) for this process [Transfer_function] (b) Time constant Tand damping coefficient in the transfer function are: (Tau], [Zeta] (C) At t= 0, if Qis suddenly changed from 5000 kcal/min to 6000 kcal/min, calculate the exit temperature T after 2 minutes. [T-2minutes) (d) Calculate the exit temperature T after 8 minutes. [T-8minutes)
