For the truss shown below find the flowing: 1- Investigate the truss stability and determinacy. 2- Find the force in mem

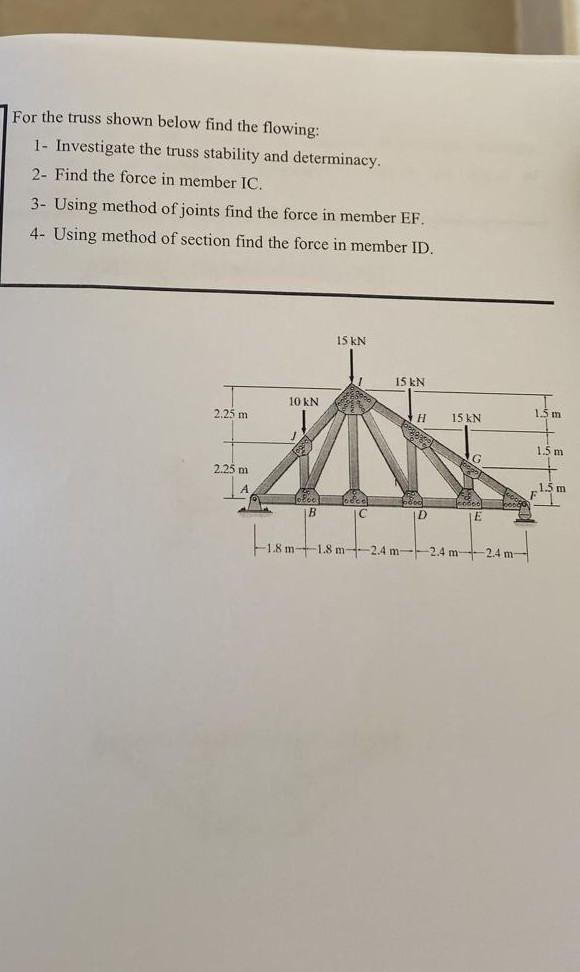

For the truss shown below find the flowing: 1- Investigate the truss stability and determinacy. 2- Find the force in member IC. 3- Using method of joints find the force in member EF. 4. Using method of section find the force in member ID. 15 KN 15 kN 10 KN 2.25 m H 15 KN 1.5 m 1.5 m 2.25 m 1.5 m loca B band D Lobo E tient -1.8 m +1.8 m -2.4 m2.4 m -24 m-
