QUESTION 2 A series of steel floor beams are arranged as shown in Figure Q2, to support a reinforced concrete slab with

[answerhappygod]

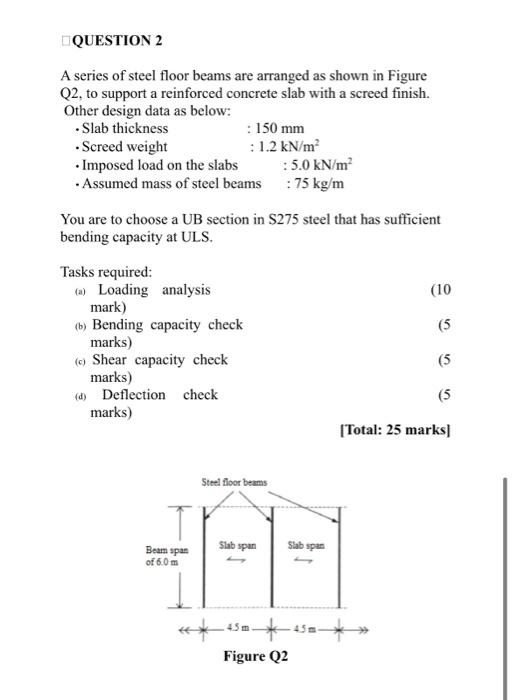

Question 2 A Series Of Steel Floor Beams Are Arranged As Shown In Figure Q2 To Support A Reinforced Concrete Slab With 1 (33.13 KiB) Viewed 37 times

QUESTION 2 A series of steel floor beams are arranged as shown in Figure Q2, to support a reinforced concrete slab with a screed finish. Other design data as below: Slab thickness : 150 mm Screed weight : 1.2 kN/m • Imposed load on the slabs 35.0 kN/m² • Assumed mass of steel beams : 75 kg/m You are to choose a UB section in S275 steel that has sufficient bending capacity at ULS. (10 (5 Tasks required: @ Loading analysis mark) (b) Bending capacity check marks) (c) Shear capacity check marks) (d) Deflection check marks) (5 (5 [Total: 25 marks] Steel floor beams 1 Beam spas Slab span Slab Spar of 60 m ** Figure Q2
